The Siklu Kilo Series EtherHaul™ products are the most widely deployed 70/80GHz radios worldwide. This is due to the fact that the products were introduced to the market at a price that was affordable. The radios are unmatched in performance and reliability, delivering multi Gbps connections over long distances for years.
EtherHaul™ Kilo Series
WHAT ARE THE FEATURES?
Carrier Class Construction and Performance
The radio capacities start at 700Mbps TDD with the EH-1200TX product and go as high as 10Gbps Full Duplex with the FDD EH-8010. With Siklu’s patented RFIC implementations these capacities are supported at ranges reaching as far as 4.3 miles (6.9km) and at a cost that has led and dramatically expanded the market for gigabit connectivity in the E band spectrums.
Flexible Topology and Interfaces
Advanced networking toolkit to create flexible topologies in chains, drop & insert and sub-50msec resilient rings.
With layer 2 support via a built-in Gigabit switch with extra copper and fibre ports enables seamless cascading. The product includes a PoE out for the external powering of cameras and other devices. MEF-compliant Ethernet OAM and CFM (IEEE 802.1ag / ITU-T Y.1731 / IEEE 802.3ah) for advanced monitoring and troubleshooting.
Similar to the V band or 60GHz products, the EtherHaul™ Kilo Series supports wide frequency agility in the 70/80GHz bands and extremely narrow beams resulting in almost unlimited spectrum for dense deployments of EtherHaul™ radios. You can achieve Interference-free operation in the 70/80GHz band with TDD or FDD support.
EtherHaul™ Kilo Series Products

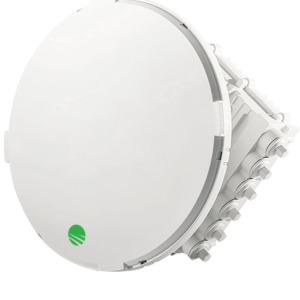

The EtherHaul-1200 series delivers carrier-grade ultra-high-capacity wireless point-to-point Ethernet. With up to 1000Mbps full-duplex over the uncongested 71-76/81-86GHz spectrum, the EH-1200 provides service providers and businesses around the world with an affordable, advanced wireless solution that is easy to install and maintain.
The EH-2500 series provides 2Gbps full-duplex capacity with extended range for accelerating broadband deployment in urban, suburban or rural areas. The carrier grade radio delivers fibre-like performance, reliability and throughput, with low CAPEX. The EH-2500 series delivers up to 2Gbps full duplex point-to-point wireless ethernet connectivity, achieved at only QAM32 modulation, that will future proof your network. Operating over the interference-free 71-76/81-86GHz band, the EH-2500 makes it easy for providers and enterprises to extend their networks maintaining fibre-like performance.
The EH-5500FD radio delivers 5Gbps full duplex (10Gbps with OMT 2+0) point-to-point wireless ethernet connectivity to future-proof your network. Operating over the interference free 71-76/81-86GHz band, the FDD EH-5500FD has additional output power and wider channels, making it easy for providers and enterprises to extend their networks by very quickly adding affordable, high capacity wireless links that are easy to install and maintain.
The EH-8010FX radio delivers up to 10Gbps full duplex point-to-point wireless ethernet connectivity with the longest mmWave reach by means of the highest system gain in the market. This advantage can be extended to several miles with the ExtendMM™ feature. Incorporating dozens of Siklu innovations, the EH-8010FX is based on the same platform that has been deployed in tens of thousands of links from the EtherHaul™ family.
Watch the Installation Guide
For more information or to find out how we can help you, contact the team directly on 01488 447 647, email@example.com.
SUPPORTING YOUR SIKLU BUSINESS
Wireless Link Planning
Our Siklu Terragraph experts will take your cabled network and replace it with a wireless gigabit solution for fibre performance through the air.
Line of Site Surveys
The line-of-sight survey determines whether a wireless link is viable between nodes and its availability can be guaranteed.
Our qualified engineers offer configuration services for all our products ensuring they are configured to the manufacturers best practices.
Our technical team will pre-stage all your equipment and provide a full report containing all the essentials to get you up and running smoothly.
To maximise your ROI we use Ekahau tools to report on how to further optimise your network and will implement recommendations while still on site.
We host regular accredited training courses for all Siklu products including the Terragraph series either online or from our dedicated training facility in our beautiful office space in Oxfordshire.
