IO Wi-Fi 5 and Wi-Fi 6 Access Points
With models suitable for all indoor and outdoor environments, from end users in smart homes to stadium crowds in huge public venues, IO by HFCL’s robust, value-packed Wi-FI 5 and Wi-fi 6 Access Points are bound to please both your customers and your pockets.
HFCL’s advanced iO WiFi 5 and WiFi 6 Access Points are compact, built to last, and come in a wide range of indoor and outdoor models to suit everyone, from basic home users to the most demanding smart city deployments.
Feature-packed with extended coverage, speed, and capacity they’re ideal for a wide range of use cases from smart homes and hospitality to healthcare and defence.
Robust and value-packed with all the latest tech at palatable yet margin-rich price points, IO’s AP range presents you with an opportunity to please both your customers and your margins – and we have them all in stock, ready to ship right away.
PSSST! Need to stay on the bleeding edge of WiFi tech? The world’s first WiFi 7 APs by HFCL will be available to order soon – visit our IO by HFCL WiFi 7 page to find out more.
Wi-FI 6 Access Points
IO Indoor WiFi 6 Access Points
High-performance, feature-packed, budget-friendly Access Points offer users a speedy, uninterrupted experience for all connectivity demands.

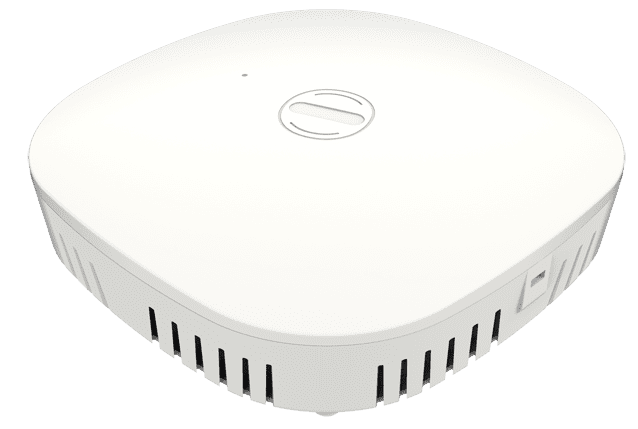

IO ion4xi Dual Band 2×2:2 Indoor Access Point (4 dBi Omni)
The IO ion4xi is a cloud-managed 2×2:2 MU-MIMO Wi-Fi 6 certified Access Point with intergrated 4 dBi omni-directional antenna that raises the bar for wireless performance and efficiency.
With the combination of cloud management, high-performance hardware and advanced software features, the ion4xi is ideal for most demanding use cases and performance-intensive applications such as high-def videos, Augmented Reality, VR and much more.

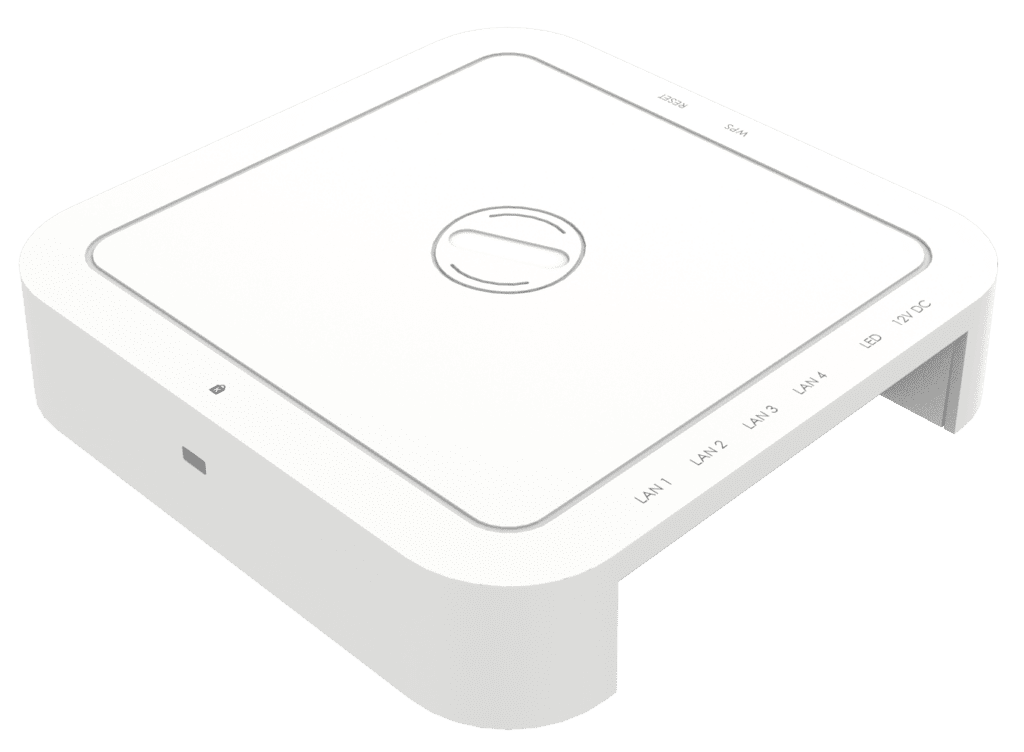

IO ion4xi_WP 2×2:2 Indoor Wall Plate Access Point (4 dBi Omni)
The ion4xi_WP is a convenient cloud-managed, wall-plateable 2×2:2 MU-MIMO Wi-Fi 6 certified access point with an integrated 4dBi omnidirectional antenna. Designed and specified specifically to the needs of the hospitality industry, this sleek wall plate model ensures high speeds, great network coverage & ultra-secure connectivity.
High bandwidth, performance-intensive applications such as HD video streaming will be a breeze with the ion4xi_WP, ensuring a great guest experience and happy customers all year round – visit our dedicated IO ion4xi_WP page to learn more!
IO ion8xi Dual Radio 4×4:4 Indoor Access Point (5 dBi Omni)
Experience lightning-fast speeds, high spectral efficiency and reduced latency with IO’s ion8xi. This 4X4 Dual Radio Indoor Access Point features a peak data rate of up to 5.95 Gbps enabling it to cater for 1024 concurrent clients in ultra-low latency & high-density indoor use cases.

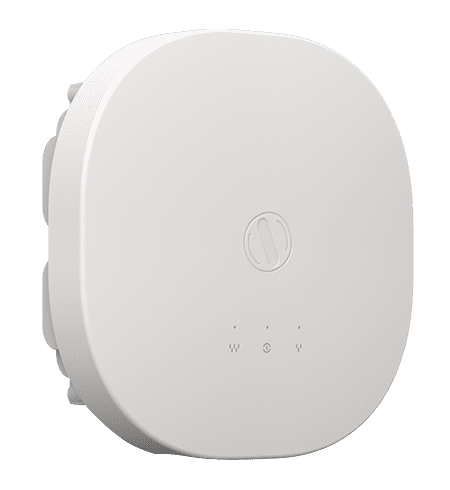

IO ion12xi_h 4×4/8×8 Indoor Access Point (6 dBi Omni)
The ion12xi_h is a cloud-managed Wi-Fi 6 Access Point designed to cater for both high demand and super-fast connectivity. Eight spatial streams in the 5 GHz band in conjunction with four spatial streams in 2.4 GHz result in up to 12 streams of Wi-Fi 6 connectivity, significantly boosting overall spectrum use, maximizing coverage and optimizing per-user throughput to the maximum using integrated high gain omnidirectional antennas.
The ion12xi_h is available in two variants; ion12xi_h is DC powered, while the ion12xi_h2 features both DC and PoE – download the PDF below for full specifications.
IO Outdoor Wifi 6 Access Points
Designed to withstand the harshest weather conditions & most demanding environments
IO by HFCL’s range of robust, humidity, water and dust-resistant outdoor access points have been designed to provide seamless connectivity in the most demanding environments. Purpose-built with specifications for large outdoor venues and events, you can be confident HFCL’s outdoor AP line-up will meet your requirements – and all are very competitively priced to please both you and your customers.
IO ion4x Dual Radio 2×2:2 MU-MIMO Outdoor Access Point (8 dBi)
With the combination of high-performance hardware, cloud management and advanced software features, the ion4x is ideal for most demanding use cases and performance-intensive applications such as high-definition video, VR and augmented reality.
The ion4x outdoor AP can be provided in two variants; this one here (ion4x) features an integrated 8 dBi gain antenna, while the ion4x_2 (see below) features a larger 14 dbi antenna.
IO ion4x_2 Dual Radio 2×2:2 MU-MIMO Outdoor Access Point (14 dBi)
The ion4x_2 is the bigger brother of the ion4x (see above) – identical in every way apart from its physical size due to its larger 14 dBi gain antenna allowing data to be transmitted over a longer distance.
Please see the datasheet below for full specifications & dimensions.

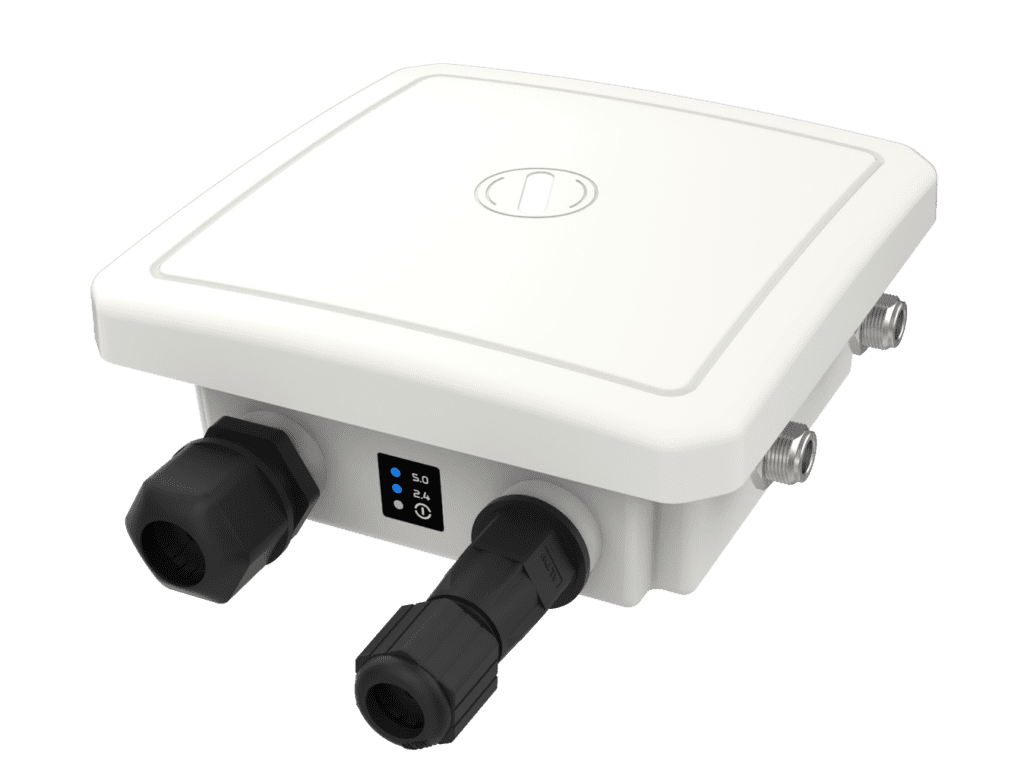

IO ion4xe Dual Radio 2×2:2 Outdoor Access Point (ext antenna)
Specification and appearance wise, the ion4xe is almost identical to the ion4x, with the only difference being that rather than containing an integrated antenna, it has instead been designed with additional connectors on its side for use with external antennas – as indicated by the ‘e’ at the end of the model number.
Much like the ion4x, the ion4xe is a high-performance cloud-managed 2×2:2 MU-MIMO Wi-Fi 6 certified AP with a wealth of advanced software features. The ion4xe is ideal for most demanding use cases and performance-intensive applications such as streaming HD video and VR.
IO ion4x_w & ion4x_w2 2×2:2 Outdoor Access Points (9 dBi Omni)
The ion4x_w and ion4x_w2 are cloud-managed 2×2:2 MU-MIMO Wi-Fi 6 certified Access Points with integrated 9 dBi omni-directional antennas. Engineered with high-performance hardware and advanced software features, the ion4x_w is ideal for demanding outdoor use cases and bandwidth-hungry applications like high-definition videos and AR/VR.
The ion4x is available in two variants depending on your signal requirements.
ion4x_w : features a non-LTE band reject filter
ion4x_w2 : features an LTE band reject filter

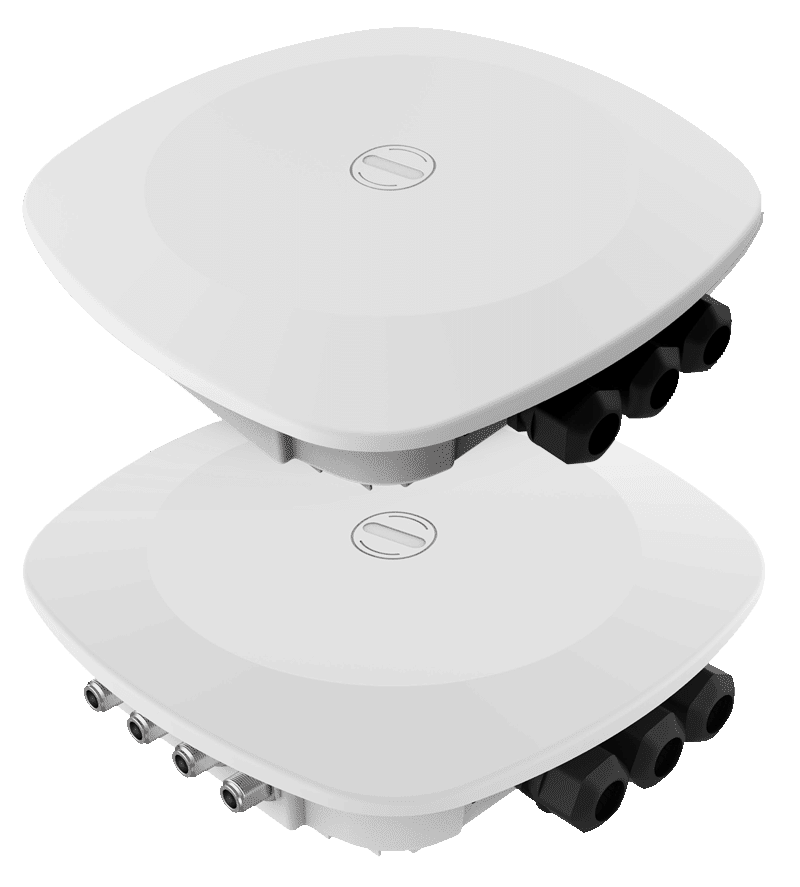

IO ion8x and ion8xe 4×4:4 Outdoor Access Points (8 dBi / ext)
The IO ion8x and ion8xe are managed 4×4:4 MU-MIMO Wi-Fi 6 certified APs providing lightning-fast speeds, high spectral efficiency and reduced latency. With a peak data rate of up to 5.95 Gbps, they can cater to 1024 concurrent clients with ultra-low latency in high-density outdoor use cases.
The ion8x is available in two variants; the ion8x features an integrated 8 dBi directional antenna, while the ion8xe provides connections for external antennas instead.
Wi-FI 5 Access Points – Limited Stocks
IO WiFi 5 Access Points
We have very limited stocks of these great little IO’s WiFi 5 Access Points available for delivery right away, one indoor and two outdoor models. As with IO’s entire range, these compact, robust APs are priced to please both you and your customers – but get in there quick, once they’re gone, they’re gone!
Indoor

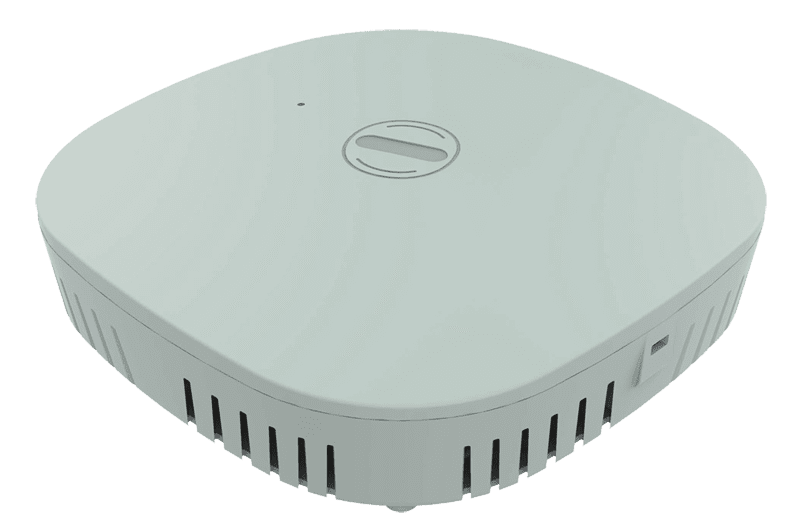

IO ion4i_w 2×2 Indoor Wi-Fi 5 Access Point (5dBi)
IO Indoor Access Point uniquely designed for high-performance, next-gen networks based on 802.11ac Wave 2 technology with integrated 2.4 and 5 GHz 2×2:2 MU-MIMO radios.
The ion4i_w provides throughput of up to 867 Mbps on 5 GHz and up to 400 Mbps on the 2.4 GHz band. Simultaneous data transmission to multiple devices, maximizes data throughput, improves network efficiency as well as uplink and downlink performance.
With advanced location and indoor wayfinding and proximity-based push notification capabilities, the ion4i_w enables businesses to leverage mobility context and develop applications that will deliver an enhanced user experience and increase the value of an organizations wireless network.
Outdoor

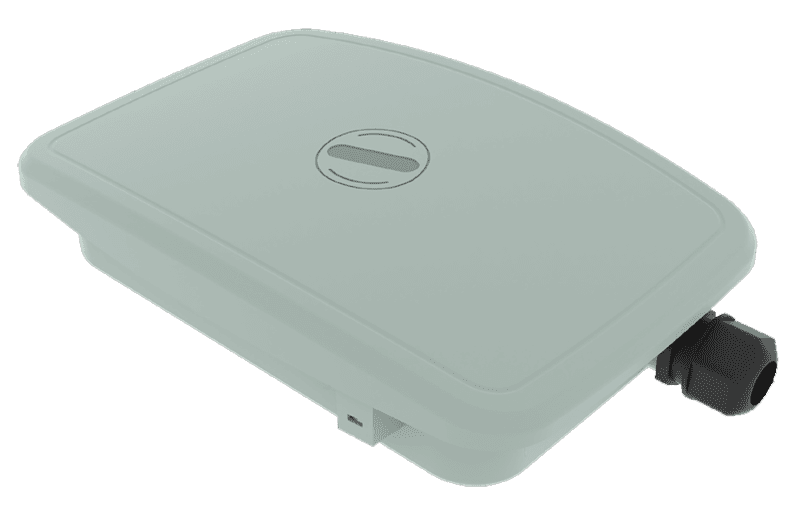

IO ion4_w 2×2 Outdoor Wi-Fi 5 Access Point (9dBi)
IO Next-Gen 2×2 Access Point is designed for outdoor use cases and provides a simple, cost-effective and high-performance network which is based on Qualcomm IPQ4019 chipset. AP supports 802.11ac Wave 2 with 2×2:2 MU-MIMO. It has concurrent dual-band radios and supports up to 867 Mbps on 5 GHz and 400 Mbps on 2.4 GHz
Supporting connectivity of up to 150 meters with their integrated antenna these ruggedized APs provide excellent coverage and performance. Its two piece PC enclosure with UV protection will provide years of durability and reliable performance.

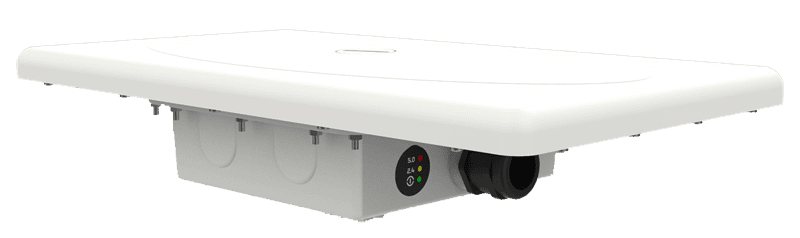

IO ion4_2 2×2:2 Outdoor Wi-Fi 5 Access Point (14dBi)
Featuring a high-performance directional 14dBi antenna the dual-band ion4_2 can provide a total throughput of up to 1.27 Gbps (867 Mbps on 5 GHz and up to 400 Mbps on the 2.4 GHz band). Download the PDF below for full specifications.
IO P2P for Unlicensed Band Radio
Excellent Performance Over Long Distances
IO Point-to-Point Backhaul (P2P)
HFCL’s flexible cloud-managed UBR P2P and P2MP backhaul solutions deliver superb performance over long-distance applications.
IP67 certified and designed from the ground up to handle the most extreme weather conditions without compromising performance you can be confident IO’s P2P solution can be relied upon to meet your needs. All models feature full end-to-end WPA, WPA2, and 128-bit AES PSK encryption with hardware acceleration protection ensuring data is shielded from threats and attacks.
Remote multi-site management is also a breeze via IO’s powerful and intuitive iEon EMS (Element Management System), eliminating the additional cost and complexity of traditional on-site wireless controllers.
ion4l is at the root of IO’s P2P range and is available in four main variants, three of them with an integrated dish and one as a separate radio for external antennas to extend coverage to distant areas without the need to deploy additional UBRs.
Each model can be provided with an optional Dying Gasp feature as indicated by “_d” in the model number:
ion4l2 / ion4l2_d
5GHz 700Mbps UBR with Integrated 23 dBi Dish Antenna
ion4l3 / ion4l3_d
5GHz 700Mbps UBR with Integrated 25 dBi Dish Antenna
ion4l4 / ion4l4_d
5GHz 700Mbps UBR with Integrated 27 dBi Dish Antenna
ion4le / ion4le_d
5GHz 700Mbps UBR for External Antennas
For full specifications and information please see the PDF’s below
IO P2MP for UBR
Adaptable Backhaul Solutions for Changing Environments
IO Point to Multipoint Backhaul (P2MP)
IO’s highly scaleable, cloud-managed Point to Multipoint backhaul solution includes two main products, each available in multiple variants to suit a wide range of deployment scenarios.
On the Master Side we have the ion4l1_BTS and ion4l2_BTS featuring an integrated sector antenna operating at 700Mbps in either 17dBi or 19dBi respectively, each model is also available with an optional Dying Gasp feature.
On the Slave Side we have the ion4l2_CPE and ion4l3_CPE. The ion4l2_CPE features an integrated omnidirectional dish antenna at 23dBi, while the antenna on the ion4l3_CPE is 25dBi. Both are designed for a peak throughput of 300Mbps and both are available with the optional Dying Gasp.
In addition to the above, there is an ion4le_CPE radio with connectors for external antennas for extended coverage without the need to deploy additional UBRs.
The external antennas are equipped with dual pole polarization and flexibility of different beam widths and gains.
Remote multi-site management is a breeze via IO’s powerful and intuitive iEon EMS (Element Management System), eliminating the additional cost and complexity of traditional on-site wireless controllers.
For full specifications and information please see the PDF’s below
IO External Antennas
Seamless Performance and Extended Range
External Antennas for Access Points & UBR Deployments
IO provide a versatile, forward-thinking range of high-performance antennas more than capable of supporting the increasing traffic demands of today’s ever more connected world.
IO’s antenna range features two models ideal for access points and two for UBR (Unlicensed Band Radio). All feature excellent gain and interference rejection and are available in several variants suitable for a wide range of applications.
Each model has been built with a rugged yet lightweight design for easy installation and rapid deployment.
For extending the range of APs there is a tall dual-band omnidirectional antenna (HFDBV-NMOMNI-0406) for 360 degrees wireless coverage, or a dual-band sector antenna with 3 signal variants of either 60, 90 or 120 degrees.
For UBR deployments there’s the sector antenna with 60, 90 or 120-degree variants and a 2×2 MIMO dish antenna providing excellent connectivity for long distances.
All sector and dish antennas come with pole mounts and RF cables with N- Male connectors.
