RUCKUS ICX family of fixed form-factor switches are built
for high performance, flexibility and easy management.
Why choose RUCKUS ICX switches ahead of the competition? The answer is simple – they deliver a secure, scalable, high-performance network solution designed to support the most demanding needs of both today and tomorrow. RUCKUS ICX switches integrate easily with RUCKUS APs, SmartZone network controllers and RUCKUS One to provide a high-performing wired and wireless access solution and work seamlessly to simplify your networks and enhance security.
All RUCKUS ICX switches offer at least 120 Gbps, 10 GbE SPF+ uplink options at the entry-level and 40 GbE and 100 GbE at a mid-range level to eliminate bottlenecks between layers and ensure reliable user performance in medium and very high-density wireless environments. RUCKUS’ enterprise grade switches are designed for easy installation and simple set up, and are compatible with most RUCKUS products allowing for seamless connectivity between devices.
RUCKUS ICX Fibre Switches
Fibre offers robust and reliable speed over the network infrastructure. With RUCKUS ICX switches you can effectively run from 10, 40 or 100-gigabit speeds. The greatest benefit of fibre is that you can go up to 100km and if you’re using multi-mode, you can go up to 300 meters at 10 gigabits.
With fibre switches, you can not only have the speed advantage, but it is a flexible approach that allows you to run your network at 1 gigabit/10 gigabit or even faster. This is the most versatile RUCKUS switching solution that can last your business a long time, without having to upgrade too frequently.
ICX 7550-24F Switch
24 Ports 1G/10G SFP/SFP+ Aggregation Switch
- 24-port 1/10 Gbps
- 2-ports 40/100 Gbps Uplink/Stack QSFP28, expansion module slot
ICX 7550-48F Switch
48 Ports 1G/10G SFP/SFP+ Agrregation Switch
- 36-port 100/1000 Mbps SFP
- 12-port 1/10 Gbps SFP+
- 2-ports 40/100 Gbps Uplink/Stack QSFP28, expansion module slot
ICX 7650-48F Switch
24 Port 1G SFP & 24 Port 10G SFP+ Aggregation Switch
- 24x 100/1000 Mbps SFP ports
- 24x 1000 Mbps / 10 Gbps SFP+ ports
- Can stack on 4x40G or 2x100G rear-facing QSFP ports. These ports can also be used as 2x40G or 2x100G uplinks when the switch is standalone
- One slot for 1x 100G or 2x40G or 4x10G front-facing module
- 2x hot-swappable load-sharing power supplies and 2x hot-swappable fan assemblies with reversible airflow options
ICX 7850-32Q Switch
32 Ports 100G Chassis Replacement Core Switch
- 32x 40/100 GbE QSFP28 ports can be split into 128x 10/25 GbE ports with breakout cables
- 2x hot-swappable load-sharing power supplies and 6x hot-swappable fan assemblies

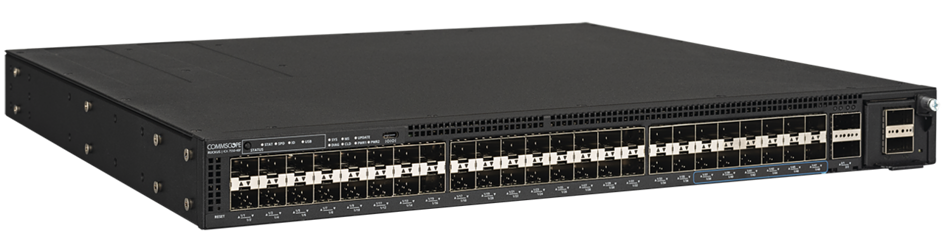

RUCKUS ICX 7850-48FS
ICX 7850-48FS Switch
48 Ports 10G/SFP+ Chassis Replacement Core Switch with MACsec & LRM
- 48x 1/10 GbE SFP+ ports with 128/256 bit MACsec and LRM support
- 8x 40/100 Gbps QSFP28 ports can be split into 32x 10/25 GbE ports with breakout cables
- 2x hot-swappable load-sharing power supplies and 6x hot-swappable fan assemblies
RUCKUS ICX 7850-48F
ICX 7850-48F Switch
48 Ports 25G/SFP24 Chassis Replacement Core Switch
- 48x 1/10/25 GbE SFP+ ports
- 8x 40/100 Gbps QSFP28 ports can be split into 32x 10/25 GbE ports with breakout cables
- 2x hot-swappable load-sharing power supplies and 6x hot-swappable fan assemblie
RUCKUS ICX Multigigabit Next-Generation Switches
RUCKUS ICX 7150-C10ZP, ICX 7150-48ZP, ICX 7550 24/48ZP and ICX 7650-48ZP are designed to handle next-generation 802.11ac Wave 2 and Wi-Fi 6 (802.11ax access points) and future wireless technology. These ICX switches support the 803.2bz standard and offer 2.5 GbE ports or 2.5/5/10 GbE ports (on the ICX 7150-C10ZP, ICX 7550 and ICX 7650) to connect multigigabit APs at increased data speeds.
This new technology delivers up to 10 times the bandwidth of regular Gigabit Ethernet on standard twisted-pair cables, reducing the total number of links needed between switches and APs and optimizing wireless performance and scalability. As wireless speed demand increases, the ICX multigigabit switches will ensure that it will provide the power for now and the future.
ICX 7150-C10ZP Switch
Compact 10 Ports Multigigabit PoE Switch
- 10x RJ-45 multigigabit ports, including 8× 2.5 GbE ports and 2x 2.5/5/10 GbE ports
- 2× 1/10 GbE uplink/stacking SFP/SFP+ ports
- 240W PoE budget. Delivers up to 90W per port on 4 PoH 802.3bt ready ports. Fanless
ICX 7150-48ZP Switch
Entry-Level 48 Ports Multigigabit PoE Switch
- 16× 100/1000 Mbps/2.5 Gbps RJ45 PoH ports
- 32x 10/100/1000 Mbps RJ45 PoE+ ports
- 1,480 W PoE budget (with two power supplies)
- 8x 1/10 GbE uplink/stacking SFP/SFP+ ports
ICX 7550-24/48ZP Switch
Mid-Range 24 Ports MultiGigabit PoE Switch
- 12-port 10/100/1000 Mbps/2.5 Gbps 802.3bt POE
- 12-port 100/1000 Mbps/2.5/5/10 Gbps 802.3bt POE
- 2-port 40/100 Gbps Uplink/Stack QSFP28, expansion module slot
- 24-PoE port 802.3bt, up to 90W per port, up to 2000W PoE budget
- Perpetual and Fast-boot POE on all ports
Mid-Range 48 Ports MultiGigabit PoE Switch
- 36-port 10/100/1000 Mbps/2.5 Gbps 802.3bt POE
- 12-port 100/1000 Mbps/2.5/5/10 Gbps 802.3bt POE
- 2-ports 40/100 Gbps Uplink/Stack QSFP28, expansion module slot
- 24-PoE port 802.3bt, up to 90W per port, up to 2000W PoE budget
- Perpetual and Fast-boot POE on all ports
ICX 7650-48ZP Switch
High-end 48 Ports Multigigabit PoE Switch
- 24×1/10/1000 Mbps RJ45 PoE+ ports
- 24× 100/1000 Mbps 2.5/5/10 Gbps RJ45 PoE+/ PoH/UPoE ports
- One slot for 1× 100G or 2×40G or 4×10G
- Up to 1500 W PoE budget
RUCKUS ICX Generic Switch Portfolio
RUCKUS ICX is a broad portfolio of stackable switches to meet the requirements of any vertical market, by offering simplified wired and wireless management across the network.
Every ICX switch with PoE supports standard PoE (802.3af; 15 watts), and PoE+ (802.3at; 30 watts). Each ICX switch can provide power to even the most densely populated environments.
RUCKUS ICX 7150 Switch Range
- RUCKUS ICX 7150-24
- RUCKUS ICX 7150-24P
- RUCKUS ICX 7150-48
- RUCKUS ICX 7150-48P
- RUCKUS ICX 7150-48PF
- PoE/PoE+/PoH to power 802.11ac Wi-Fi products
- Stack level high availability and stack level ISSU to improve network service resiliency
- sFlow-based network monitoring
- SDN-enabled with OpenFlow support
- Easy transition to RUCKUS Campus Fabric for network automation and management simplicity Plug-and-play operations for powered devices via LLDP and LLDP-MED protocols
- Auto-configuration ensures error free configuration and accelerates deployment
- Hot-insertion and removal of stack members simplifies operations
- Up to 12 switches per stack, up to 10km between stacked switches
- Up to 8 x 10 GbE ports for stacking or uplinks
RUCKUS ICX 7450 Switch Range
- RUCKUS ICX 7450-24
- RUCKUS ICX 7450-24P
- RUCKUS ICX 7450-48
- RUCKUS ICX 7450-48P
- Expansion slots accept modules with different uplink speeds and services
- PoE/PoE+/PoH (95W) to power video surveillance, VDI terminals, and HD displays
- 40 GbE standards-based stacking links – no proprietary cables needed
- Up to 3 uplink modules with 4 x 1 GbE, 4 x 10 GbE, or 1 x 40 GbE ports
- Site-to-site IPsec VPN service module eliminates dedicated encryption devices
- 10 Gbps throughput per service module
- Suite B algorithms and support for 128-bit and 256-bit AES
- Programmable hardware technology, enabling more features to be added to IPsec VPN deployments

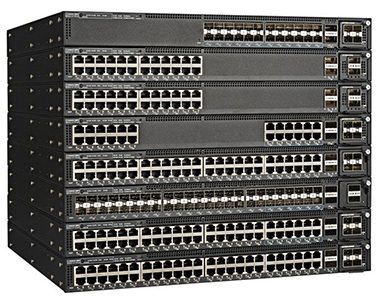

RUCKUS ICX 7550 Switch Range
- RUCKUS ICX 7550-24
- RUCKUS ICX 7550-48
- RUCKUS ICX 7550-24P
- RUCKUS ICX 7550-48P
- RUCKUS ICX 7550-24F
- RUCKUS ICX 7550-48F
- RUCKUS ICX 7550-24ZP
- RUCKUS ICX 7550-48ZP
- Purpose-built wired underlay for Wi-Fi 6 deployments to support the latest generation of smartphones, tablets and laptops
- Up to 3x 4/100 GbE ports for uplink and stacking to minimize network bottlenecks
- Best-in-class-level multigigabit 2.5/5/10 GbE and 1/10 GbE fiber port density to eliminate network bottlenecks
- 90W PoE ports (802.3bt) and 2000W PoE budget to power digital signage, UHD surveillance cameras, PoE lighting and other smart-building devices
- Unique stacking capabilities with long distance stacking on standard 100 Gbps QSFP ports up to 10 km and up to 12 units to simplify management and ease network deployment
RUCKUS ICX 7650 Switch Range
- RUCKUS ICX 7650-48P
- RUCKUS ICX 7650-48ZP
- RUCKUS ICX 7650-48F
- Up to 1500 W PoE budget
- 48× 10/100/1000 Mbps RJ45 ports with 40 supporting PoE+ and eight supporting PoE+, UPoE and PoH
- One slot for 2×40G or 4×10G front-facing module
RUCKUS ICX 7750 Switch Range
- RUCKUS ICX 7750-Q
- RUCKUS ICX 7750-48F
- RUCKUS ICX 7750-48C
- Up to 10km between stacked switches
- Up to 5.76 Tbps of aggregated stacking bandwidth with full redundancy
- Up to 32×40 GbE or 96×10 GbE ports per unit
- Industry-leading 10/40 Gbps Ethernet port density and flexibility
- 6 full-duplex 40 Gbps stacking ports per switch
- 1U form factor saves rack space and power in wiring closets
RUCKUS ICX 7850 Switch Range
- RUCKUS ICX 7850-32Q
- RUCKUS ICX 7850-48FS
- RUCKUS ICX 7850F
- 8 full-duplex 100 Gbps stacking ports per switch
- Industry-leading 40/100 Gbps Ethernet port density and flexibility
- Up to 32×100 GbE or 128×25 GbE ports per unit
- Up to 9.6 Tbps of aggregated stacking bandwidth
- Stacks up to 12 units with up to 10km between stacked switches

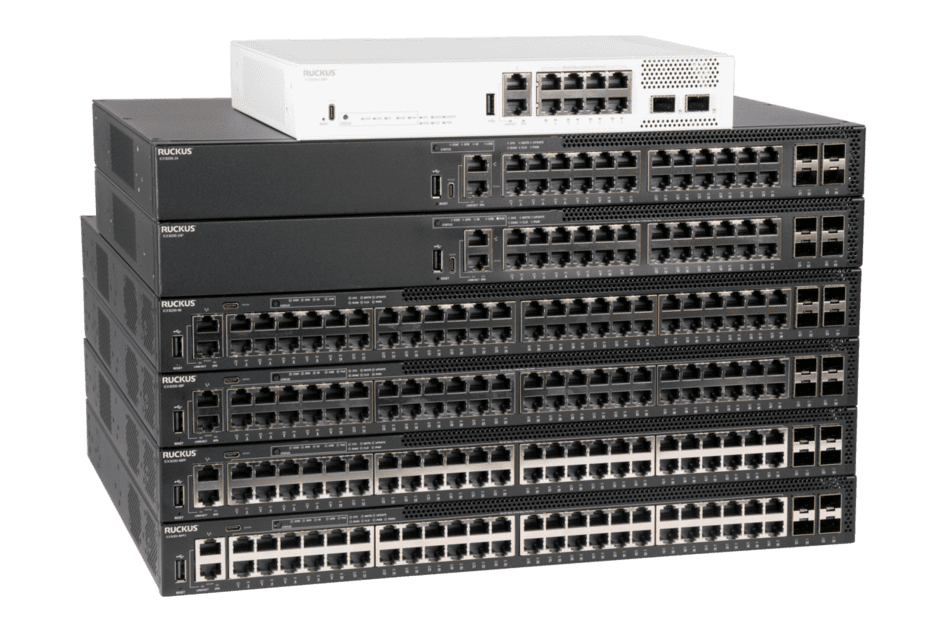

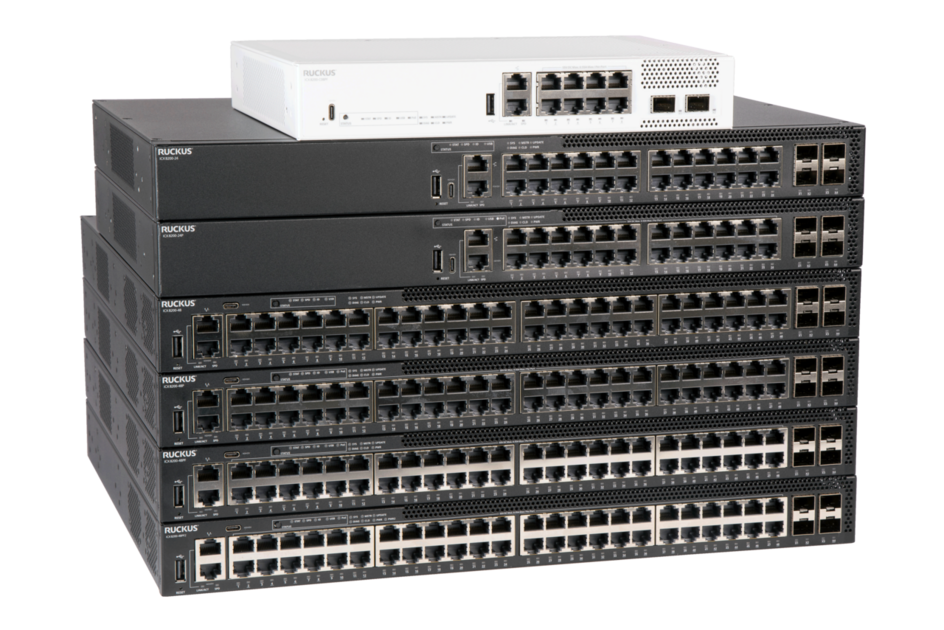

RUCKUS ICX 8200 Switch Range
- RUCKUS ICX 8200-8
- RUCKUS ICX 8200-8P
- RUCKUS ICX 8200-24
- RUCKUS ICX 8200-24P
- RUCKUS ICX 8200-48
- RUCKUS ICX 8200-48P
- RUCKUS ICX 8200-48E
- RUCKUS ICX 8200-48E2
- Maximum flexibility: Gigabit, Multigigabit edge ports and Fibre to the Room
- Power next generation Aps and PoE devices
- 25 GbE uplinks/stacking for maximum performance and future-proofing
- Enhanced Security and data privacy
- Advanced L3 routing delivers network design flexibility
- Broad range of unified management options for maximum flexibility
- Enhanced availability
- Services and support included

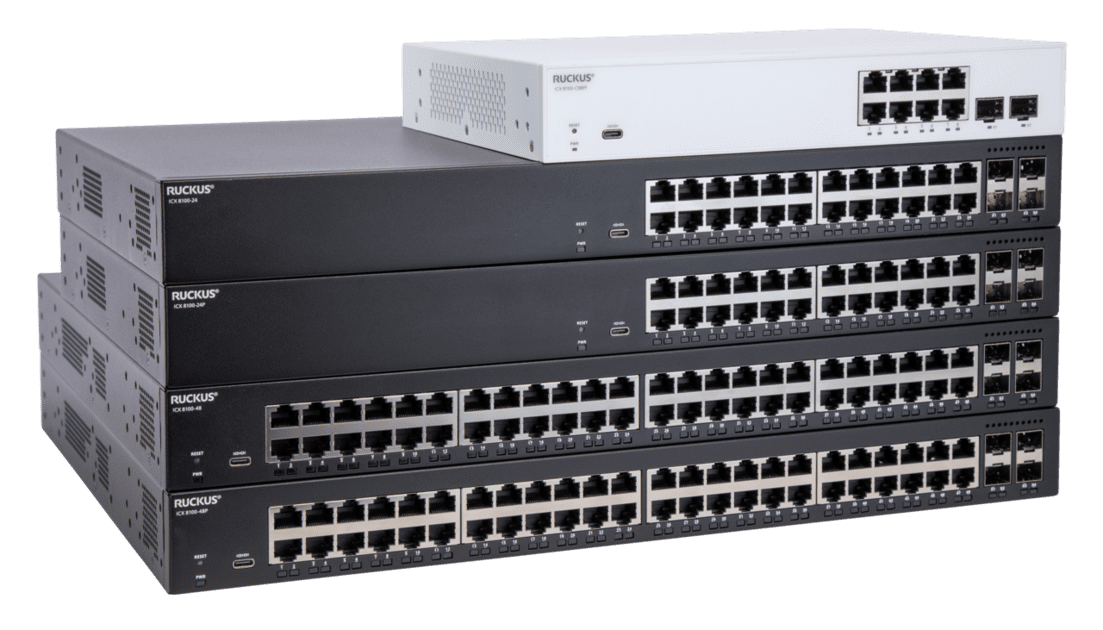

RUCKUS ICX 8100 Switch Range
- RUCKUS ICX 8100-24
- RUCKUS ICX 8100-24P PoE
- RUCKUS ICX 8100-48
- RUCKUS ICX 8100-48P PoE
- RUCKUS ICX 8100-48PF PoE
- RUCKUS ICX 8100-C08PF PoE
- RUCKUS ICX 8100-C16P PoE
- Gigabit, access ports with 10GbE uplinks
- 8, 16, 24 and 48 Gigabit Ethernet ports for maximum
flexibility - Up to 4x 10GbE SFP+ uplink fiber ports
- Optimized for latest generation Wi-Fi APs deployment
- PoE+ 802.3at, up to 30W per port on all ports
- Up to 740W PoE budget with integrated power supply
- Fanless compact switches and full size non-PoE switches
- Broad range of enterprise-class converged wired + wireless
management options for maximum flexibility
