RUCKUS Wi-Fi 7 Access Points

Stay ahead of the curve with RUCKUS WiFi 7 access points – delivering exceptional network performance, greater capacity & even more reliability.

THE BENEFITS OF RUCKUS Wi-Fi 7 ACCESS POINTS (802.11be APs)

- RUCKUS Access Points (APs): Multigigabit access speeds and performance delivered using built-in 2.5GbE/5 GbE/10GbE to match high wireless capacity
- OFDMA and MU-MIMO capabilities supports double (16 v 8) the spatial streams of Wi-Fi 6
- 4096 Quadrature Amplitude Modulation also known as 4K QAM, is up from the 1024-QAM in Wi-Fi 6.
- Frequency band of 6ghz as well as the usual 2.4 and 5ghz means Wi-Fi 7 access points can now use a channel 320MHz wide
- IOT and LTE-ready APs with higher capability for more data-intensive IoT applications and adds MLO for simultaneous multi-band connectivity.
Target Wake Time (TWT) – with Wi-Fi 7 this is faster and more reliable enabling devices to determine when and how frequently they will wake up to send or receive data

RUCKUS Bleamflex+ antenna

BleamFlex + adaptive antenna the access points – automatically establish in real-time a host of antenna pattern, for the best connectivity for the devices that are connected to the access point.

Creates two major benefits:

• Better Wi-Fi 7 performance and coverage without increasing transmit power
• Reduced co-channel interference

Also, the RUCKUS BleamFlex+ antenna directs the radio signals for Wi-Fi 7 access points using adaptive beamforming and polarisation diversity to support high device density environments.

For more information on BeamFlex+

ChannelFly

As more competing devices try to connect to a network, it can become difficult to determine and establish a good connection.

ChannelFly dynamic channel technology uses machine learning to automatically locate the least congested channels, therefore with RUCKUS access points you can trust RUCKUS to provide the best connection in the least congested channel, with the highest throughput the band can support.

SmartMesh

SmartMesh minimises the use of expensive cabling, and complex mesh configurations. SmartMesh wireless technology, dynamically creates self-forming, self-healing mesh networks, creating better mesh networking.

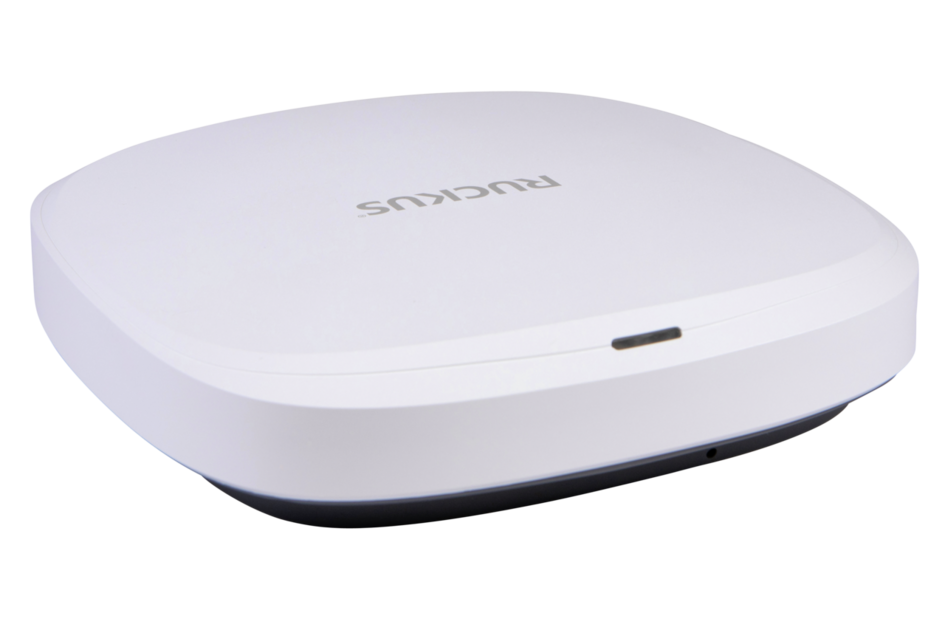

RUCKUS R670 Indoor WiFi 7 Access Points (APs)

RUCKUS R670 WiFi 7 Access Point

Dual and Tri-band concurrent AP
with MU-MIMO, BeamFlex+
and 2.5/5Gbps backhaul

WFA Certified Wi-Fi 7
6 Spatial Streams

Tri-band

2×2:2 (2.4, 5, 6GHz) MU-MIMO

Dual-band

2×2:2 (2.4GHz) MU-MIMO

4×4:4 (5GHz) MU-MIMO
Peak PHY Throughput:

– 5.765Gbps (6GHz)
– 5.765Gbps (5GHz)
– 689Mbps (2.4GHz)
Built-in IoT Radios with Onboard
BLE/Zigbee enabling IoT applications
High Density Deployment
High networking: capacity 768 clients

DATA SHEET: R670

RUCKUS R770 WiFi 7 Access Point

Tri-band Concurrent AP
with MU-MIMO, BeamFlex+
and 10Gbps backhaul
16 Spatial Streams
4×4:4 (5GHz), 4×4:4 (2.4GHz) 2×2:2 (2.4GHz & 6GHz)
– WFA Certified Wi-Fi 7
Peak PHY Throughput
– 5.765Gbps (5GHz)
– 689Mbps (2.4GHz)

– 5.765Gbps (6GHz)

Built-in IoT Radios with Onboard

Integrated BLE/Zigbee enabling IoT applications
High-Density Deployment
High networking: capacity 1024 clients

DATA SHEET: R770

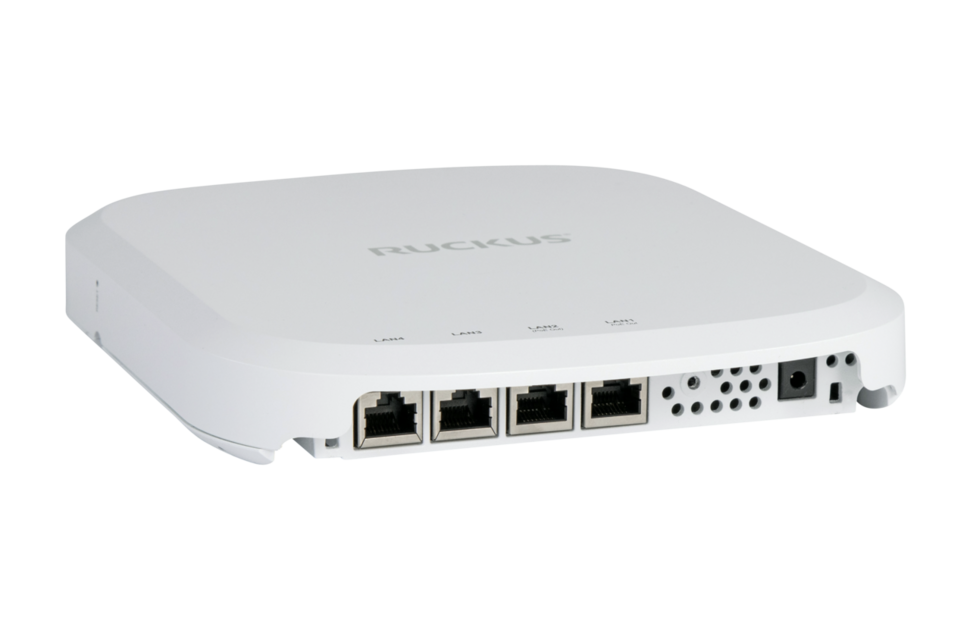

RUCKUS H670 WiFi 7 Access Point

Dual and Tri-band concurrent AP
with MU-MIMO, BeamFlex+
and 5Gbps backhaul

WFA Certified Wi-Fi 7
6 Spatial Streams

2×2:2 (2.4, 5, 6GHz) MU-MIMO
Peak PHY Throughput:

– 5.765Gbps (6GHz)
– 2.882Gbps (5GHz)
– 689Mbps (2.4GHz)
Built-in IoT Radios with Onboard
BLE/Zigbee enabling IoT applications
High Density Deployment
High networking: capacity 768 clients

DATA SHEET: H670

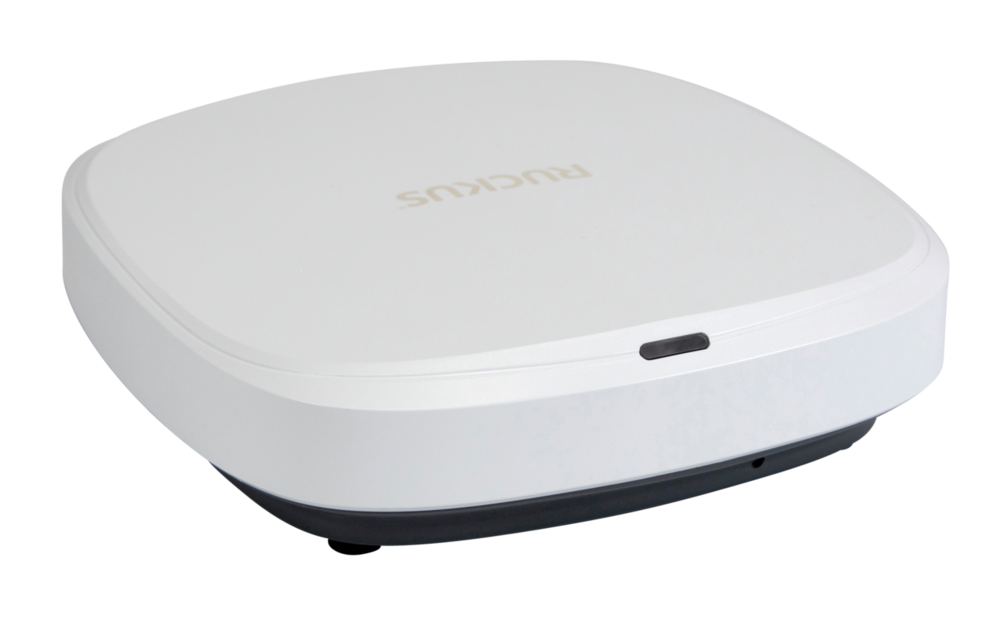

RUCKUS R370 WiFi 7 Access Point

Dual-band Concurrent AP
with MU-MIMO, BeamFlex+
and 1Gbps backhaul
4 Spatial Streams
2×2:2 (2.4GHz & 5GHz)
– WFA Certified Wi-Fi 7
Peak PHY Throughput
– 2.882Gbps (5GHz)
– 688Mbps (2.4GHz)

Controller Platform Support

Compatible with RUCKUS One, SmartZone, RUCKUS Unleashed
High-Density Deployment
High networking: capacity 256 clients

DATA SHEET: R370

RUCKUS T670 WiFi 7 AP Outdoor Access Points

RUCKUS T670 WiFi-7 Outdoor Access Point

Tri-band Outdoor AP
with MU-MIMO and BeamFlex+

6 Spatial streams

2×2:2 (2.4, 5, 6GHz)
4×4:4 (5GHz)
Peak PHY Throughput:

– 5.765Gbps (6GHz)
– 5.765Gbps (5GHz)
– 689Mbps (2.4GHz)

Controller Platform Support

Compatible with SmartZone, RUCKUS Unleashed and RUCKUS One
High-Density Deployment:
High networking capacity 768 clients

DATA SHEET: T670

RUCKUS T670SN WiFi-7 Outdoor Access Point

Tri-band AP
with MU-MIMO and BeamFlex+

2 Spatial streams
2×2:2 (2.4, 5, 6GHz)

4×4:4 (5GHz)
Peak PHY Throughput:

– 5.765Gbps (6GHz)
– 5.765Gbps 4×4:4 2.882Gbps 2×2:2 (5GHz)
– 689Mbps (2.4GHz)

VLAN

802.1Q (1 per BSSID or dynamic per user based on RADIUS)

VLAN Pooling

Port-based
High-Density Deployment:
Up to capacity 768 clients per AP

DATA SHEET: T670SN

WHAT ARE THE BENEFITS OF RUCKUS WiFi 7 ACCESS POINTS (802.11be APs)

- RUCKUS Access Points (APs): Multigigabit access speeds and performance delivered using built-in 2.5GbE/5 GbE/10GbE to match high wireless capacity
- OFDMA and MU-MIMO capabilities supports double (16 v 8) the spatial streams of Wi-Fi 6
- 4096 Quadrature Amplitude Modulation also known as 4K QAM, is up from the 1024-QAM in Wi-Fi 6.
- Frequency band of 6ghz as well as the usual 2.4 and 5ghz means Wi-Fi 7 access points can now use a channel 320MHz wide
- IOT and LTE-ready APs with higher capability for more data-intensive IoT applications and adds MLO for simultaneous multi-band connectivity.
Target Wake Time (TWT) – with Wi-Fi 7 this is faster and more reliable enabling devices to determine when and how frequently they will wake up to send or receive data

RUCKUS Bleamflex+ antenna

BleamFlex + adaptive antenna the access points – automatically establish in real-time a host of antenna pattern, for the best connectivity for the devices that are connected to the access point.

Creates two major benefits:

• Better Wi-Fi 7 performance and coverage without increasing transmit power
• Reduced co-channel interference

Also, the RUCKUS BleamFlex+ antenna directs the radio signals for Wi-Fi 7 access points using adaptive beamforming and polarisation diversity to support high device density environments.

For more information on BeamFlex+

ChannelFly

As more competing devices try to connect to a network, it can become difficult to determine and establish a good connection.

SmartMesh

RUCKUS R670 WiFi 7 Indoor AP

Dual and Tri-band concurrent AP
with MU-MIMO, BeamFlex+
and 2.5/5Gbps backhaul

WFA Certified Wi-Fi 7
6 Spatial Streams

Tri-band

2×2:2 (2.4, 5, 6GHz) MU-MIMO

Dual-band

2×2:2 (2.4GHz) MU-MIMO

4×4:4 (5GHz) MU-MIMO
Peak PHY Throughput:

DATA SHEET: R670

RUCKUS R770 Indoor Access Points (APs) [ruckus R770 Access Points (APs) 0L5A7202] Hi Res

RUCKUS R770 WiFi 7 AP

– 5.765Gbps (6GHz)

Built-in IoT Radios with Onboard

Integrated BLE/Zigbee enabling IoT applications
High-Density Deployment
High networking: capacity 1024 clients

DATA SHEET: R770

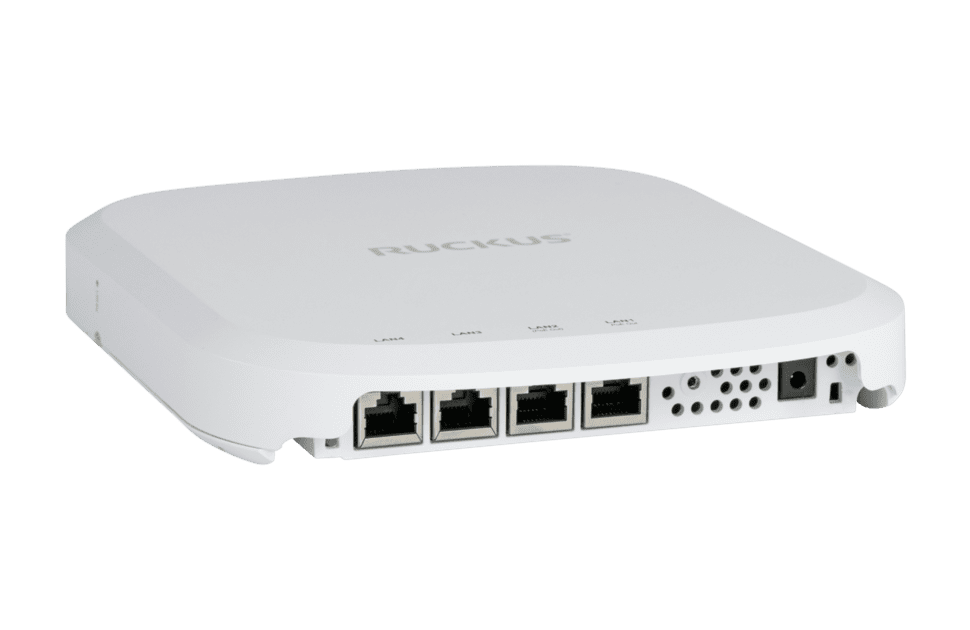

RUCKUS H670 WiFi 7 AP

Dual and Tri-band concurrent AP
with MU-MIMO, BeamFlex+
and 5Gbps backhaul

WFA Certified Wi-Fi 7
6 Spatial Streams

2×2:2 (2.4, 5, 6GHz) MU-MIMO
Peak PHY Throughput:

DATA SHEET: H670

RUCKUS R370 WiFi 7 AP

Controller Platform Support

Compatible with RUCKUS One, SmartZone, RUCKUS Unleashed
High-Density Deployment
High networking: capacity 256 clients

DATA SHEET: R370

RUCKUS T670 OUTDOOR WiFi-7 AP

Tri-band Outdoor AP
with MU-MIMO and BeamFlex+

6 Spatial streams

2×2:2 (2.4, 5, 6GHz)
4×4:4 (5GHz)
Peak PHY Throughput:

– 5.765Gbps (6GHz)
– 5.765Gbps (5GHz)
– 689Mbps (2.4GHz)

Controller Platform Support

Compatible with SmartZone, RUCKUS Unleashed and RUCKUS One
High-Density Deployment:
High networking capacity 768 clients

DATA SHEET: T670

RUCKUS T670SN OUTDOOR WiFi-7 AP

Tri-band AP
with MU-MIMO and BeamFlex+

2 Spatial streams
2×2:2 (2.4, 5, 6GHz)

4×4:4 (5GHz)
Peak PHY Throughput:

– 5.765Gbps (6GHz)
– 5.765Gbps 4×4:4 2.882Gbps 2×2:2 (5GHz)
– 689Mbps (2.4GHz)

VLAN

802.1Q (1 per BSSID or dynamic per user based on RADIUS)

VLAN Pooling

Port-based
High-Density Deployment:
Up to capacity 768 clients per AP

DATA SHEET: T670SN
