The RUCKUS ICX 8100 switch range is designed to deliver enterprise-class connectivity to businesses of any size without additional complexity or cost. Whether you’re deploying a network for a hotel, MDU, a school or educational institution, this family of switches will provide the reliability and scalability required for modern connectivity demands without having to pay for features you don’t need.
THE BENEFITS OF RUCKUS ICX 8100 SWITCHES
RUCKUS ICX 8100
The RUCKUS ICX 8100 switch series is designed to deliver enterprise-class connectivity to businesses of any size without additional complexity or cost. Supporting up to four switches per stack, it offers scalable performance ideal for growing networks while delivering exceptional value through efficient, purpose-built design.
With flexible management options, including on-premises controllers, AI-driven cloud- based management, command line interface (CLI), and a web-based standalone interface, IT teams of all sizes can easily configure, monitor, and optimize their network. Whether you need hands-on control or simple plug-and-play operation, the ICX8100 is a range designed to adapt to your needs, making it an ideal solution for organizations with limited IT resources.
Built for cost-conscious organizations, the ICX 8100 delivers enterprise-grade networking at an affordable price. Its optimized feature set ensures you’re not overpaying for unnecessary capabilities, while still offering the performance, security, and scalability required to support today’s demanding environments. Easy to deploy and manage, this switch provides the perfect balance of power, simplicity, and value, tailored to the needs of specific verticals like hospitality, multi-dwelling residential properties, and educational institutions.
All standard ICX 8100 models are available in two main variants, either 1G (non-stackable), or 10G stackable (up to 4 units) as denoted with an “X” at the end of the SKU. In addition, some models in both the ICX 8100 switch series are also available in purpose-built AV versions with factory-default hardware configs optimised for simple deployment in professional audio/video installations. AV models are indicated with a “-V” at the end of the SKU and are NOT available in a stackable X variant.
IMPORTANT NOTE: While the dedicated AV models in the 8100 are not stackable, all models in the 8200 range are stackable up to 12 units by default – please see our dedicated ICX 8200 switch page for more information, and if you need additional information regarding the suitability of the 8100 switches for your specific deployment scenario, please see this article here.
Click the tabs at the top of this page to view all models in the ICX 8100 switch range and grab the PDFs below for more intricate specifications – and if you’ve got your sights set on the models optimized of AV-over-IP, there’s an additional PDF dedicated to those too:
RUCKUS ICX 8100 SWITCH DATASHEET
RUCKUS ICX 8200 & 8100 PRO AV SWITCHES
For more information, call us today on 03331 212 100, email ruckus@purdi.com or get in touch with your Account Manager – we look forward to hearing from you!

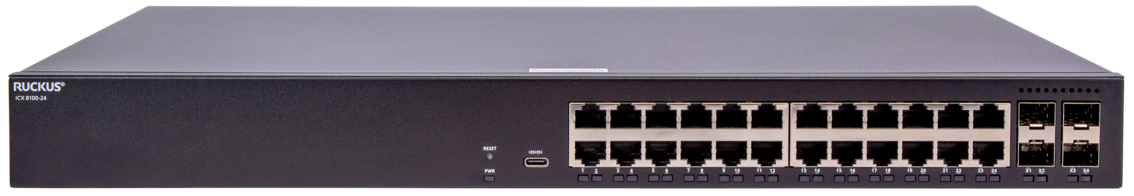

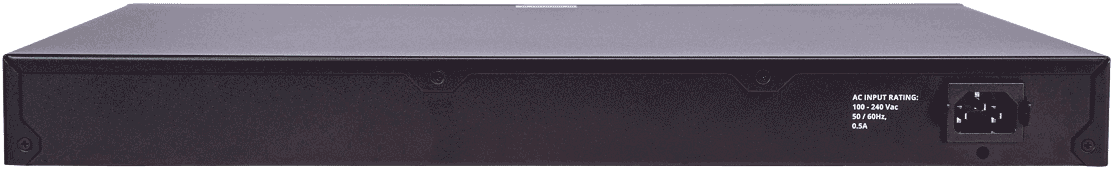

RUCKUS ICX 8100-24 Access Switch
1U rack mount entry-level access switch – 1G, 24 ports (non-stackable) on the standard version or 10G and stackable up to 4 units with the X variant (ICX 8100-24-X).
- 24× 10/100/1000 Mbps RJ-45 ports
- Choice of 4× 1GbE SFP or 4× 1/10GbE SFP+ uplink ports*
- Fanless
* SFP+, 10Gbps speed available on “-X” SKUs only

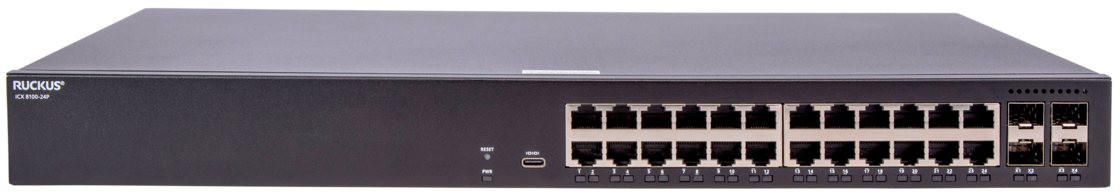

RUCKUS ICX 8100-24P PoE Switch
1U rack mount entry-level access switch – 1G, 24 ports with PoE on the standard version (non-stackable) or 10G stackable up to 4 units with the X variant (ICX 8100-24P-X).
- 24× 10/100/1000 Mbps RJ-45 PoE+ ports
- Choice of 4× 1GbE SFP or 4× 1/10GbE SFP+ uplink ports*
- 370W PoE budget. PoE+ 802.3at, up to 30W of PoE power per port
* SFP+, 10Gbps speed available on “-X” SKUs only

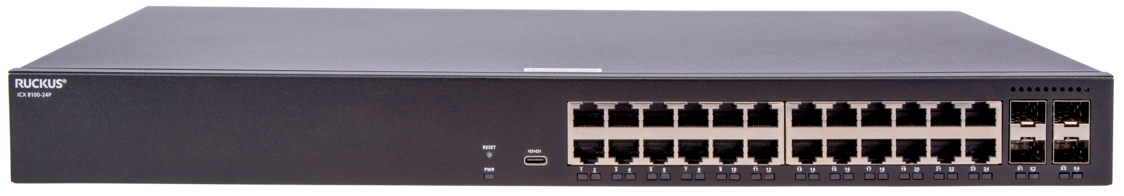

RUCKUS ICX 8100-24P-V Pro AV Switch
1U 24 port 1G PoE AV switch, purpose built and designed for professional audio/visual deployments.
- Designed for AV rack or in-wall installations
- 24× 10/100/1000 Mbps RJ-45 PoE+ ports
- 4× 1 GbE SFP uplink ports
- 370W PoE budget. PoE+ 802.3at, up to 30W of PoE power per port
- AV Profiles
All RUCKUS AV switches are provided with default hardware configs for maximum AV-over-IP performance, such as optimised multicast, IGMP and QoS settings for low latency audio & video applications, making setup for pro AV installations a breeze.
Download the datasheets below for full specifications, and don’t hesitate to give us a call if you need some advice on the best ruckus switching solution for your deployment – we’re always here to help on 03331 212 100, or email ruckus@purdi.com
RUCKUS ICX 8100 SWITCH DATASHEET
RUCKUS ICX 8200 & 8100 PRO AV SWITCHES

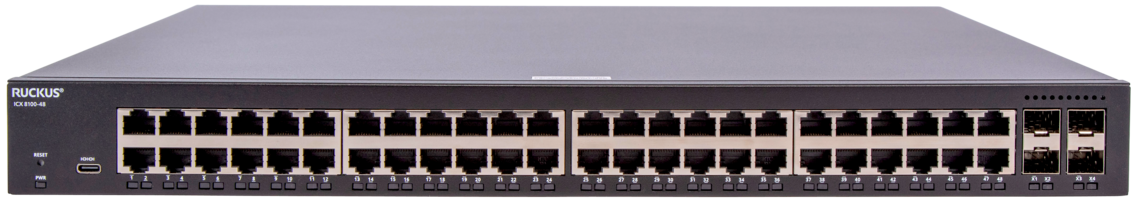

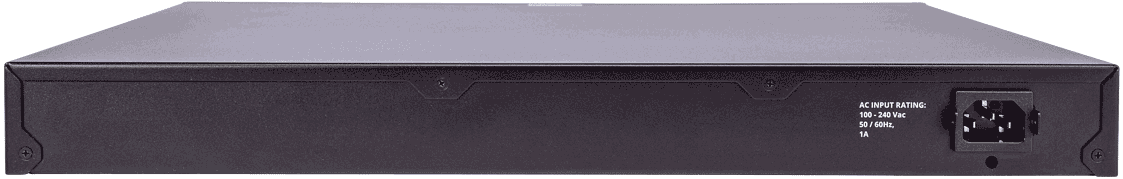

RUCKUS ICX 8100-48 Access Switch
1U rack mountable entry-level 48 port access switch – 1G on the standard version (non-stackable) or 10G and stackable up to 4 units with the X variant – ICX 8100-48-X.
- 48× 10/100/1000 Mbps RJ-45 ports
- Choice of 4× 1GbE SFP or 4× 1/10GbE SFP+ uplink ports*
- Fanless
* SFP+, 10Gbps speed available on “-X” SKUs only

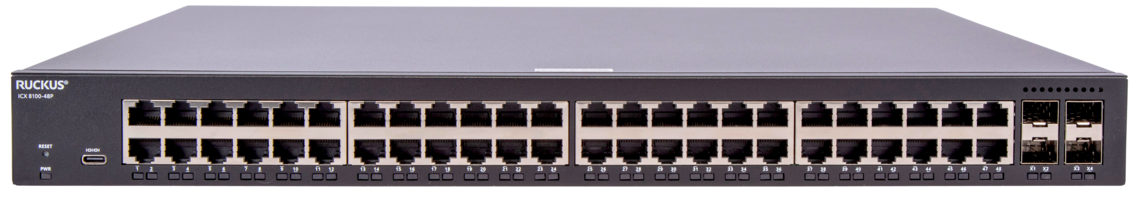

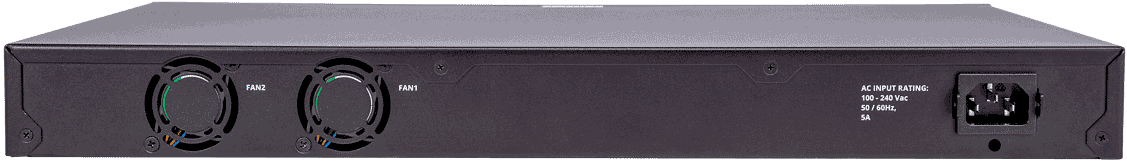

RUCKUS ICX 8100-48P PoE Switch
1U rack mountable 48 port 1G PoE access switch. The standard 1G version is not stackable, while the X variant features 10G ports and supports stacking up to 4 units (ICX 8100-48P-X).
- 48× 10/100/1000 Mbps RJ-45 PoE+ ports
- Choice of 4× 1GbE SFP or 4× 1/10GbE SFP+ uplink ports*
- 370W PoE budget. PoE+ 802.3at, up to 30W of PoE power per port
* SFP+, 10Gbps speed available on “-X” SKUs only

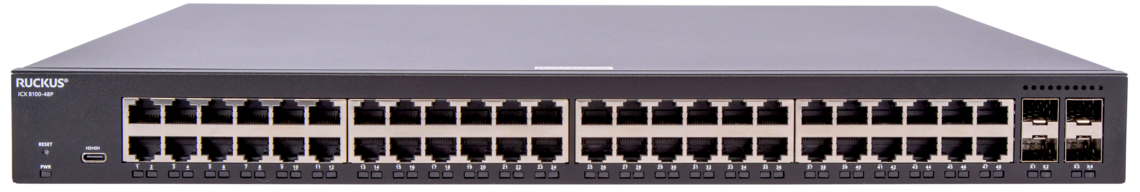

RUCKUS ICX 8100-48PF PoE Switch
1U rack mountable 48 port 1G PoE access switch with a 740w PoE budget, and allowing for an extra 12 Max PoE+ Class 4 port assignments – please see the PDF at the bottom of the page for more detailed specifications of each model. The 1G version of this model is not stackable, while the X variant (ICX 8100-48PF-X) features 10G ports and supports stacking up to 4 units.
- 48× 10/100/1000 Mbps RJ-45 PoE+ ports
- Choice of 4× 1GbE SFP or 4× 1/10GbE SFP+ uplink ports*
- 740W PoE budget. PoE+ 802.3at, up to 30W of PoE power per port
* SFP+, 10Gbps speed available on “-X” SKUs only

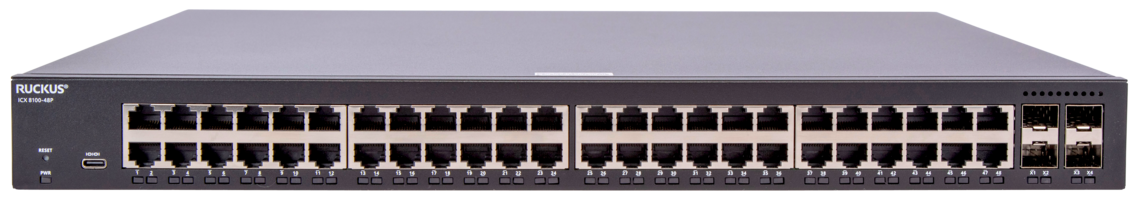

RUCKUS ICX 8100-48P-V Pro AV Switch
1U 48 port 1G PoE AV switch, purpose built and designed for professional audio/visual installations.
- 48× 10/100/1000 Mbps RJ-45 PoE+ ports
- 4× 1/10GbE SFP uplink ports
- 740W PoE budget. PoE+ 802.3at, up to 30W of PoE power per port
- AV Profiles
All AV switches (models with the “-V” suffix in the ICX 8100 and 8200 switching range) are provided with factory-default configs for maximum AV-over-IP performance straight out the box – such as optimised IGMP snooping, multicast settings and QoS for super low latency audio & video – making setup for installers working on pro AV projects a breeze.
Grab the datasheets below to view the more intimate details for the entire ICX 8100 switch family – and if you need any advice choosing the ideal switch for your deployment, having been a key distributor for Ruckus almost since its inception, you can be confident our team of professional networking nerds will be able to help you out! Just give us a call on 03331 212 100, or email ruckus@purdi.com
RUCKUS ICX 8100 SWITCH DATASHEET
RUCKUS ICX 8200 & 8100 PRO AV SWITCHES

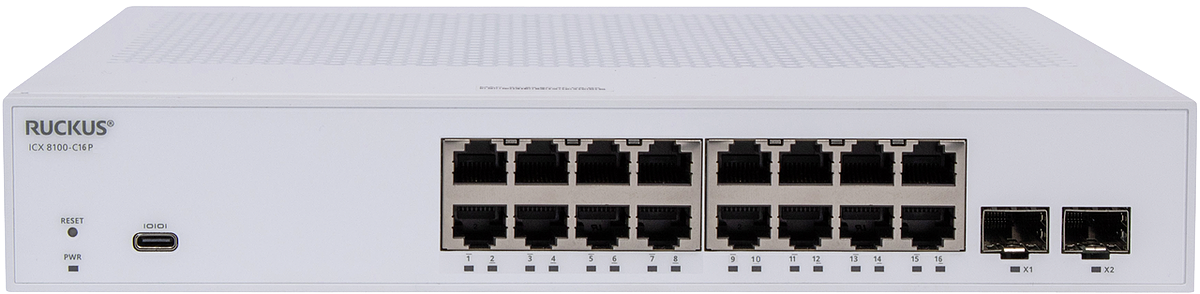

RUCKUS ICX 8100-C16P PoE Switch
Compact 16 port 1G PoE switch as standard (non stackable), or 10G SPF+ and stackable up to 4 units with the X variant (ICX 8100-C16P-X)
- 16× 10/100/1000 Mbps RJ-45 PoE+ ports
- Choice of 2× 1GbE SFP or 2× 1/10GbE SFP+ uplink ports*
- 124W PoE budget PoE+ 802.3at, up to 30W of PoE power per port
- Fanless design
* SFP+, 10Gbps speed available on “-X” SKUs only

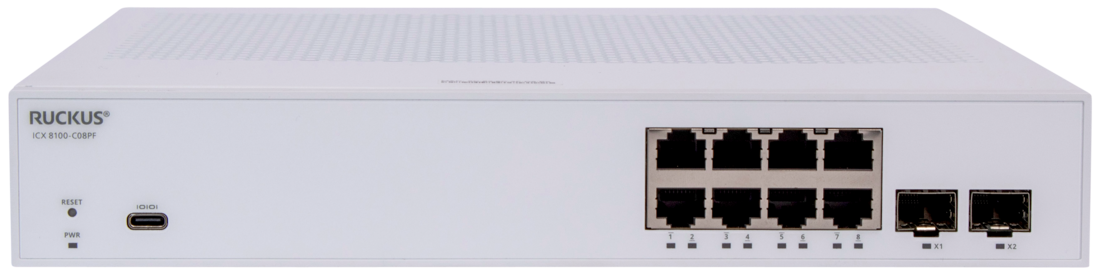

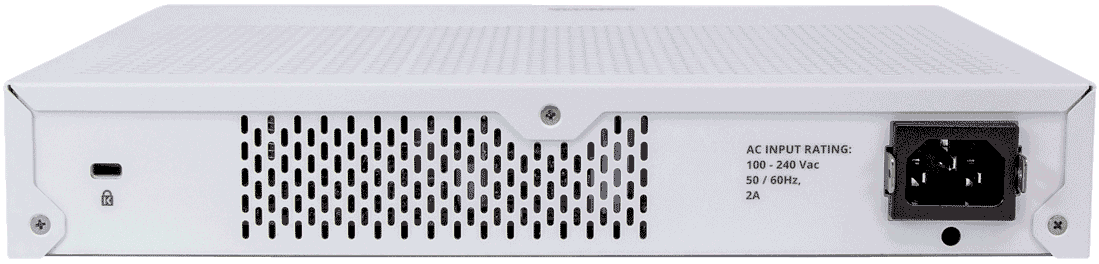

RUCKUS ICX 8100-C08PF PoE Switch
Compact 8 port entry-level PoE access switch with the standard model featuring 1G SPF ports, or the X variant 10G SPF+ and stackable up to 4 units (ICX 8100-C16PF-X)
- 8× 10/100/1000 Mbps RJ-45 PoE+ ports
- Choice of 2× 1GbE SFP or 2× 1/10GbE SFP+ uplink ports*
- 124W PoE budget PoE+ 802.3at, up to 30W of PoE power per port
- Fanless design
* SFP+, 10Gbps speed available on “-X” SKUs only

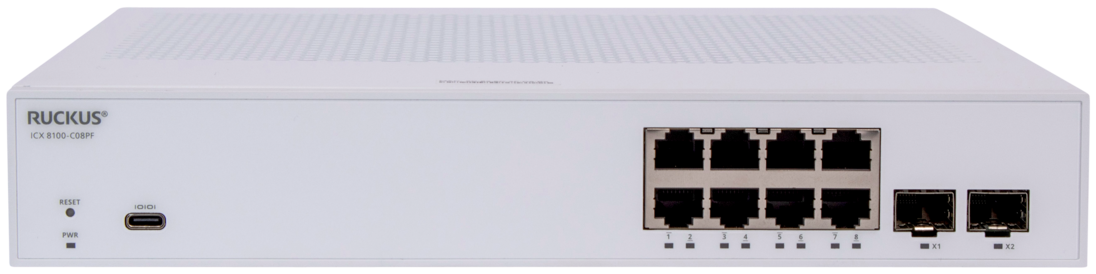

RUCKUS ICX 8100-C08P-V PoE AV Switch
The ICX 8100-C08P-V is a compact 8 port PoE AV switch. Purpose built and designed for pro audio & visual deployments with optimized factory-default configs for maximum AV-over-IP performance. All compact ICX 8100 models offer a single integrated power supply and one USB Type-C port for console management.
- 10/100/1000 Mbps RJ-45 PoE+ ports
- 2× 1 GbE SFP uplink ports
- 124W PoE budget PoE+ 802.3at, up to 30W of PoE power per port
- AV Profiles
- Silent fanless design
Download the PDFs below to see the full specifications for every model in 8100 switching range, and if you’re having trouble choosing best switch for your installation, our Ruckus experts are always available to advise on 03331 212 100, or email ruckus@purdi.com
