RUCKUS ICX 8200 Access Switches

Stackable enterprise-class access switches with future-proof expandability to handle next generation wireless first and IoT campus networks at an affordable price without compromising performance or reliability.

THE BENEFITS OF RUCKUS ICX 8200 SWITCHES

- Maximum flexibility and connectivity options
  Gigabit, Multigigabit edge ports and Fiber to the Room, optimized for latest generation Wi-Fi 6/6E/7 AP deployments with multigigabit ports. 1/2.5/5/10 Gbps Copper ports, 1G SFP and 10G SFP+ fiber ports
- Power next generation APs and PoE devices
  PoE+ 802.3at, 30W per port on all ports. PoE++ 802.3bt, 60/90W on multigigabit ports and up to 1480W PoE budget with two power supplies
- 25 GbE uplinks/stacking offers maximum performance and future-proofing
  Eliminate network bottlenecks with up to 8x 1/10/25GbE SFP28 fiber ports for uplink and/or stacking
- Advanced L3 routing delivers network design flexibility
  IPv4 and IPv6 L3 routing. Static routes, RIP, OSPF, VRRP, VRF, GRE, PIM, PBR
- Enhanced availability
  Redundant, load-sharing hot-swap power supplies and fans on specific models
- Services and Support Included
  3 years of remote TAC support included with every ICX 8200 model and Limited lifetime warranty
- Enhanced Security and data privacy
  VXLAN support for advanced network segmentation and data confidentiality

Designed for Education and Enterprise Environments

The RUCKUS ICX8200, delivers reliable performance, high level switching and PoE++ (advanced PoE) for densely populated areas of devices. Scalability, resilience and simplified management make it perfect across various education and enterprise environments.

Built for Pro AV and High-Performance Networks

Delivering low latency switching with AV-optimised profiles, multicast precision and high-speed uplinks. Supports 4K/8K AV-over-IP and real-time collaboration with consistent, reliable performance at scale.

RUCKUS ICX 8200 – Special Features

The RUCKUS ICX 8200 ethernet switch series is specifically designed to handle next generation wireless first and IoT campus networks. These intelligent, scalable edge switches deliver enterprise-class functionality at an affordable price without compromising performance and reliability.

The ICX8200 family raises the bar with up to 8× 25 GbE ports for uplinks or stacking, PoE++ (802.3bt), VXLAN, advanced L2/L3 features and market-leading stacking density with up to 12 switches per stack. In addition, ICX 8200 switches combine enterprise-class features, manageability, performance, and reliability with the flexibility, cost- effectiveness, and “pay as you grow” scalability of stackable solution.

The 8200 range also includes pre-configured purpose-built models for use in professional audio/visual installations – please see the PDFs below for detailed specifications to compare all available variants including those designed AV deployments:

DATA SHEET: RUCKUS ICX 8200

RUCKUS ICX 8200 PRO AV SWITCHES

For more information, call us on 03331 212 100, email us at ruckus@purdi.com or get in touch with your Account Manager today. We look forward to hearing from you.

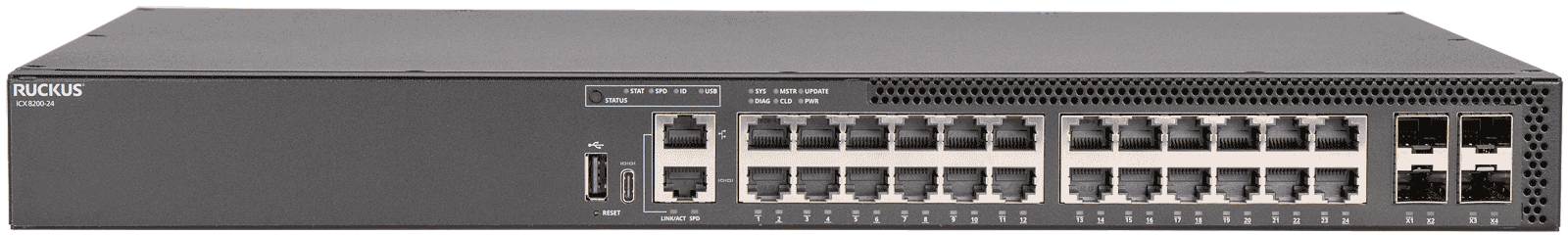

RUCKUS ICX 8200-24 Access Switch

1U rack mount Entry-Level+ access switch – 1G, 24 ports

RUCKUS ICX 8200-24 Network/Ethernet Switches

24× 10/100/1000 Mbps RJ-45 ports
4× 1/10/25 GbE uplink/stacking SFP28 ports

RUCKUS ICX 8200-24F Fiber Switch

1U rack mount Entry-Level+ fiber switch – 1G, 24 ports

RUCKUS ICX 8200-24F Network/Ethernet Switches

24× 1GbE SFP ports
4× 1/10/25 GbE uplink/stacking SFP28 ports

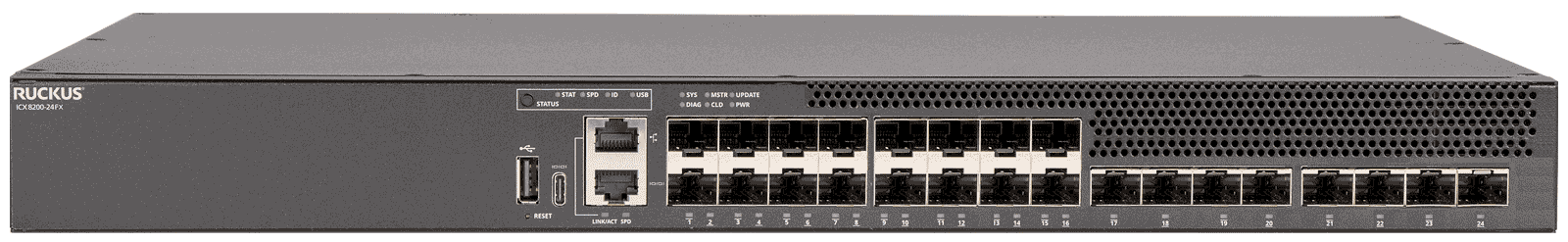

RUCKUS ICX 8200-24FX 10G Fiber Switch

1U 24 port Entry-Level+ 10G fiber switch

RUCKUS ICX 8200-24FX Network/Ethernet Switches

16× 1/10GbE SFP+ ports
8× 1/10/25 GbE uplink/stacking SFP28 ports

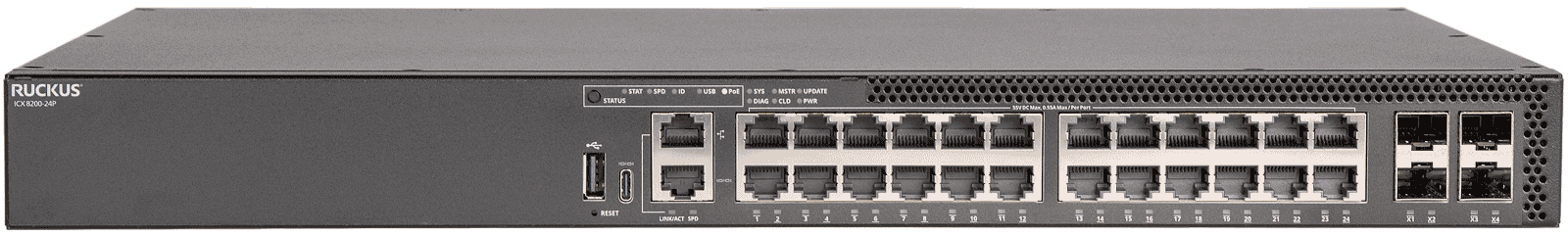

RUCKUS ICX 8200-24P PoE Switch

1U 24 port Entry-Level+ PoE access switch

RUCKUS ICX 8200-24P Network/Ethernet Switches

24× 10/100/1000 Mbps RJ-45 PoE+ ports
4× 1/10/25 GbE uplink/stacking SFP28 ports
370 W PoE budget. PoE+ 802.3at

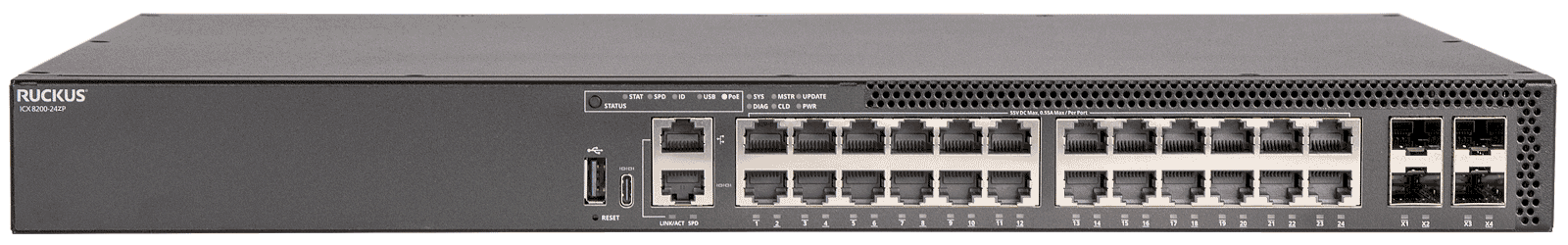

RUCKUS ICX 8200-24ZP Multigigabit PoE Switch

1U 24 port Entry-Level+ Multigigabit PoE access switch

RUCKUS ICX 8200-24ZP Network/Ethernet Switches

24× 100/1000/2500 Mbps RJ-45 PoE++ 90W ports
4× 1/10/25 GbE uplink/stacking SFP28 ports
740 W PoE budget

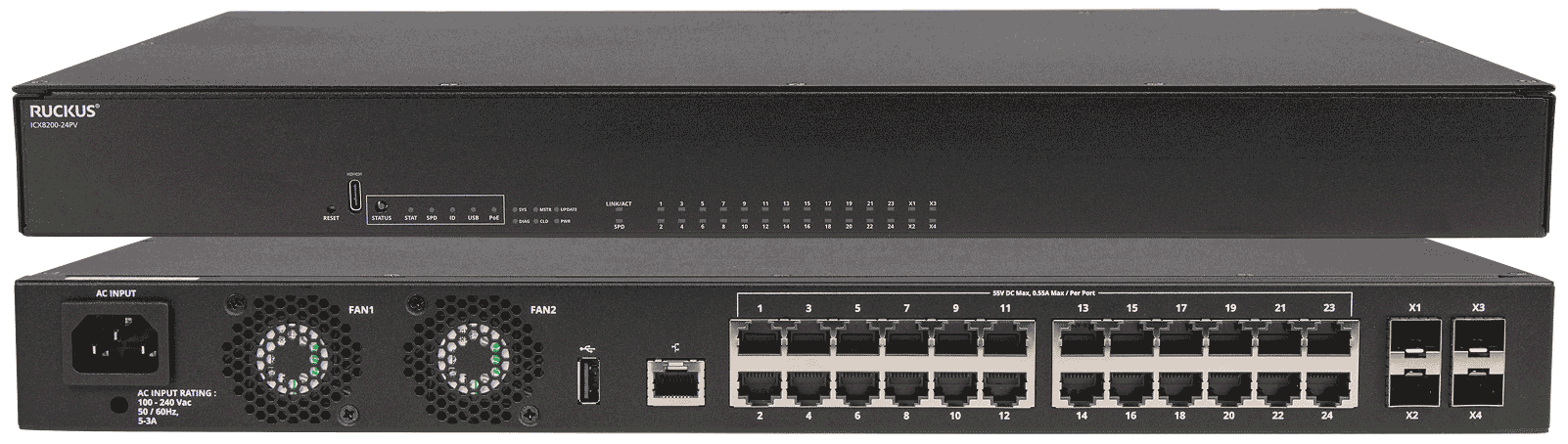

RUCKUS ICX 8200-24PV Pro AV Switch

Entry-Level+ 24 Port 1G Pro AV Switch with PoE – purpose built and designed for professional audio/visual deployments. All RUCKUS Pro AV switches are provided with factory default presets to ensure maximum AV-over-IP performance straight out the box – making demanding pro AV installations a breeze.

Designed for AV rack or in-wall installations
24X 1/100/1000 Mbps RJ45 802.3at PoE+ rear facing ports
4X 1/10/25 GbE uplink/stacking SFP28 rear facing ports
370 W PoE budget
AV Profiles

Download the datasheets below for full specifications and don’t hesitate to give us a call if you need some advice on the best ruckus switch for your requirements – we’re always here to help on 03331 212 100, or email ruckus@purdi.com

RUCKUS ICX 8200 SWITCH DATASHEET

RUCKUS ICX 8200 & 8100 PRO AV SWITCHES

RUCKUS ICX 8200-48 Access Switch

1U Entry-Level+ rack mountable 1G 48 port access switch.

RUCKUS ICX 8200-48 Network/Ethernet Switches

48× 10/100/1000 Mbps RJ-45 ports
4× 1/10/25 GbE uplink/stacking SFP28 ports

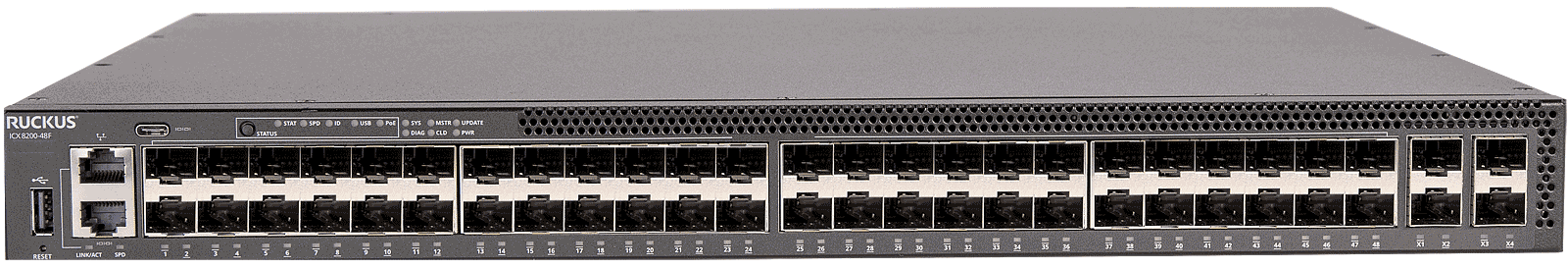

RUCKUS ICX 8200-48F Fiber Switch

1U rack mount Entry-Level+ fiber switch – 1G, 48 ports

RUCKUS ICX 8200-48F Network/Ethernet Switches

48× 1GbE SFP ports
4× 1/10/25 GbE uplink/stacking SFP28 ports

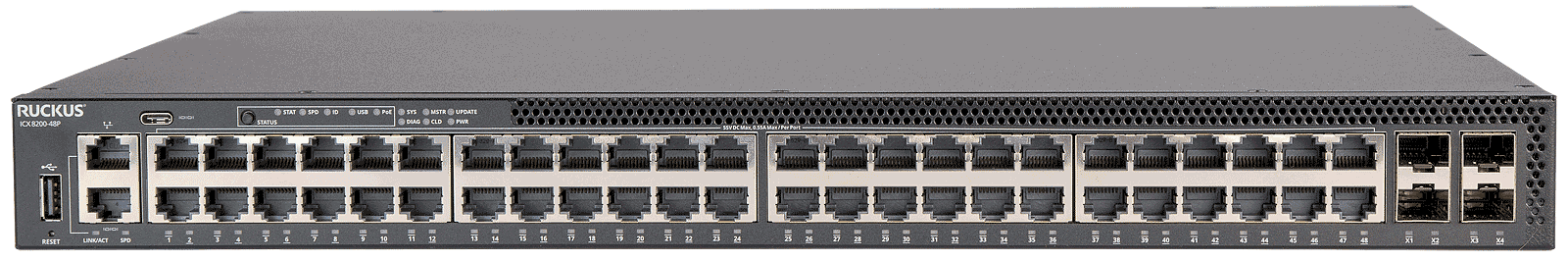

RUCKUS ICX 8200-48P PoE Switch

1U rack mount Entry-Level+ 48 port 1G PoE switch with 370W PoE

RUCKUS ICX 8200-48P Network/Ethernet Switches

48× 10/100/1000 Mbps RJ-45 PoE+ ports
4× 1/10/25 GbE uplink/stacking SFP28 ports
370 W PoE budget. PoE+ 802.3at

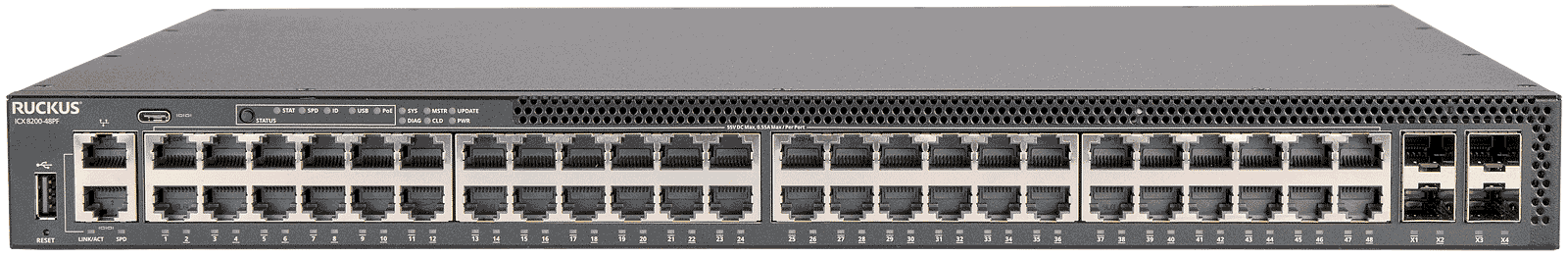

RUCKUS ICX 8200-48PF PoE Switch

1U rack mount Entry-Level+ 48 port 1G PoE switch with 740W PoE

RUCKUS ICX 8200-48PF Network/Ethernet Switches

48× 10/100/1000 Mbps RJ-45 PoE+ ports
4× 1/10/25 GbE uplink/stacking SFP28 ports
740 W PoE budget. PoE+ 802.3at

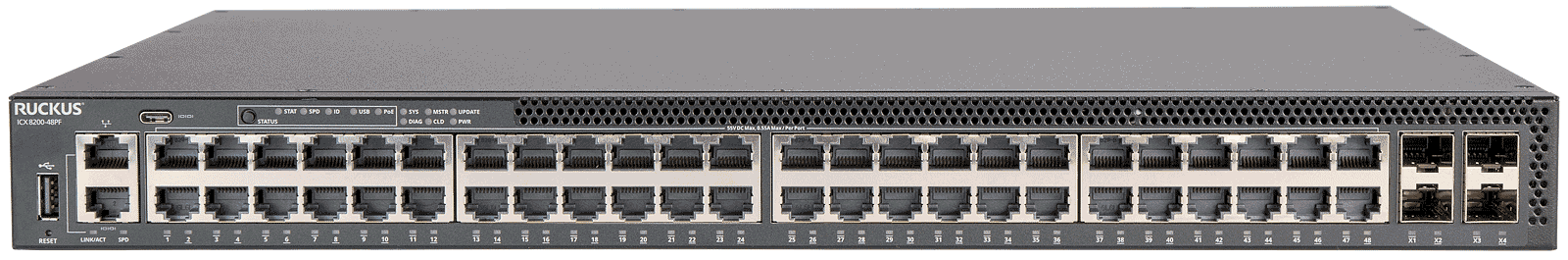

RUCKUS ICX 8200-48PF-V Pro AV Switch

The ICX 8200-48PF-V is an Entry-Level+ 1U rack mount 48 port 1G Pro AV Ethernet switch with 740W PoE budget and factory-default hardware profiles optimized for quick, easy and reliable deployment in demanding professional audio/video installations.

RUCKUS ICX 8200-48PF-V Pro AV access switches with hardware profiles optimized for professional audio/video installations

48X 1/100/1000 Mbps RJ45 802.3at PoE+ ports
4X 1/10/25 GbE uplink/stacking SFP28 ports
740 W PoE budget
AV Profiles

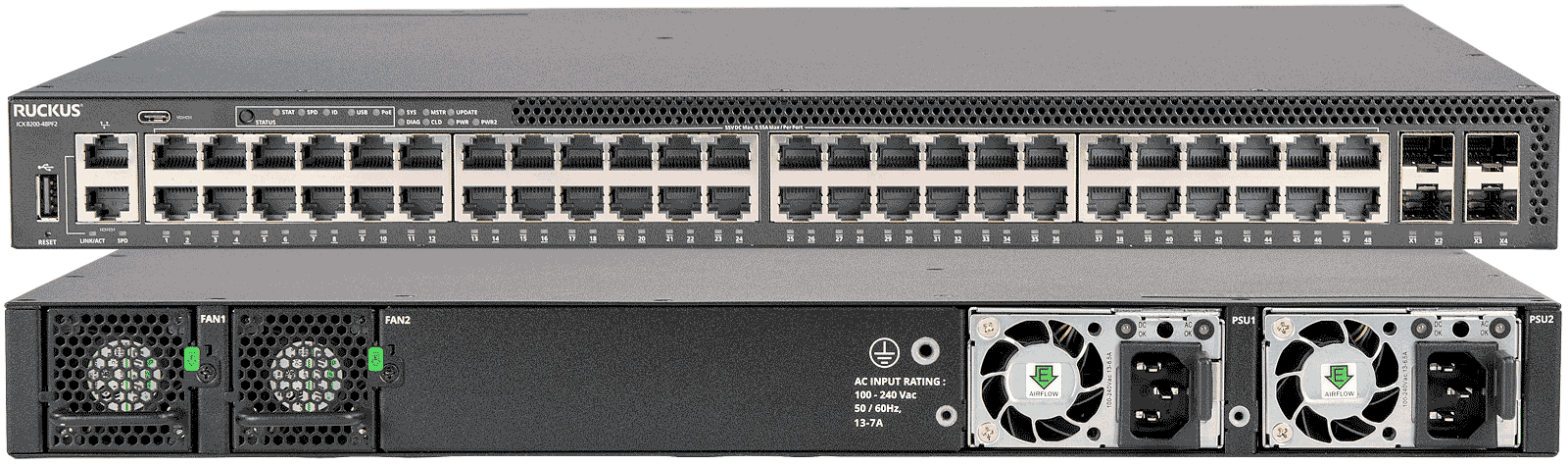

RUCKUS ICX 8200-48PF2 Dual PSU PoE Switch

1U rack mount Entry-Level+ 48 port 1G PoE switch with hot swappable dual PSUs & fans.

RUCKUS ICX 8200-48PF2 Ethernet Switches with dual hot-swappable PSU & fans

48× 10/100/1000 Mbps RJ-45 PoE+ ports
4× 1/10/25 GbE uplink/stacking SFP28 ports
1440 W PoE budget with two PSUs (740W with one PSU)
Dual hot swappable power supplies and fans

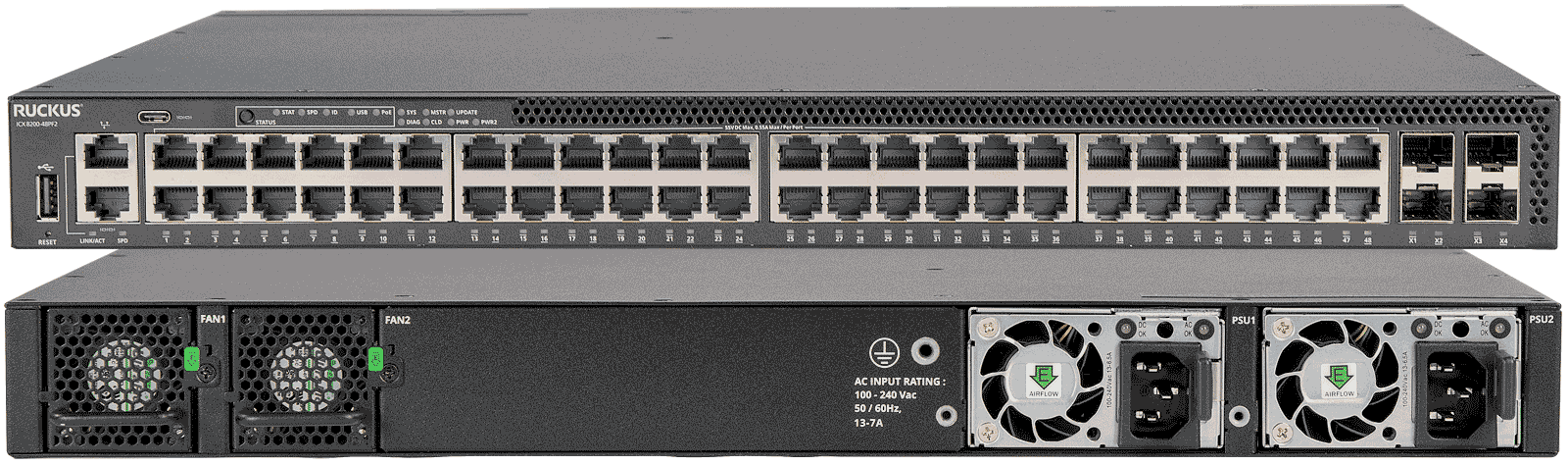

RUCKUS ICX 8200-48PF2-V Pro AV Switch

The ICX 8200-48PF2-V is an Entry-Level+ 1U rack mount, 48 port 1G PoE switch purpose-built for Pro AV installations with dual hot-swappable PSU and a total of 1440W PoE budget combined. As with all switches in RUCKUS’ Pro AV family, optimized factory-default hardware profiles are included for easy deployment and reliable, predictable performance in demanding AV-over-IP installations.

48X 1/100/1000 Mbps RJ45 802.3at PoE+ ports
4X 1/10/25 GbE uplink/stacking SFP28 ports
1,440 W PoE budget with two PSUs (740 W with one PSU)
Dual hot-swappable power supplies and fans
AV Profiles

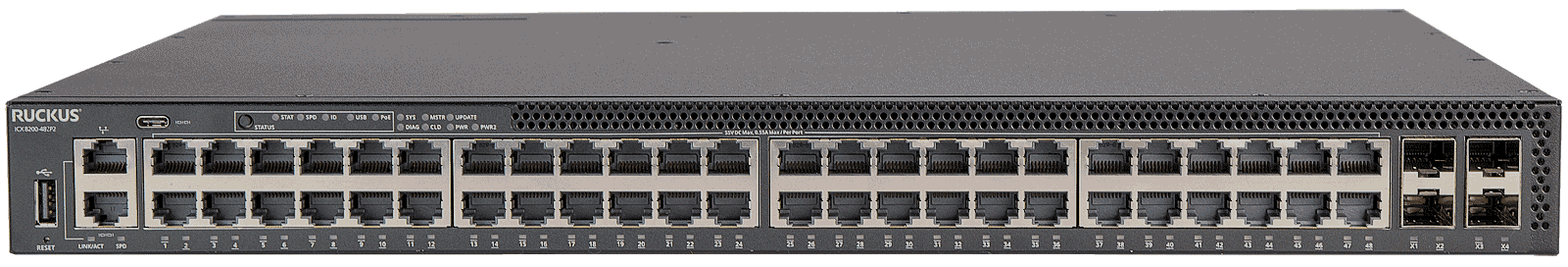

RUCKUS ICX 8200-48ZP2 Multigigabit Dual PSU PoE Switch

1U rack mount Entry-Level+ 48 port Multigigabit PoE switch with dual hot swappable PSUs & fans.

RUCKUS ICX 8200-48ZP2 Network/Ethernet Switches

32× 10/100/1000 Mbps RJ-45 PoE+ ports
16× 100/1000/2500 Mbps RJ-45 PoE++ 90W ports
4× 1/10/25 GbE uplink/stacking SFP28 ports
1480 W PoE budget with two PSUs (740W with one PSU)
Dual hot swappable power supplies and fans

RUCKUS ICX 8200-48ZP2-V Multigigabit Dual PSU Pro AV Switch

The ICX 8200-48ZP2-V is an Entry-Level+ 1U rack mount, 48 port Multigigabit PoE switch with dual hot-swappable power supplies. Purpose-built for Pro AV installations with a 1480W PoE budget and optimised factory-default AV profiles for easy installation and predictable performance in demanding AV-over-IP network deployments.

RUCKUS ICX 8200-48ZP2-V Multigigabit Pro AV Switches with dual hot-swappable PSU & fans

32× 10/100/1000 Mbps RJ-45 PoE+ ports
16× 100/1000/2500 Mbps RJ-45 PoE++ 90W ports
4× 1/10/25 GbE uplink/stacking SFP28 ports
1480 W PoE budget with two PSUs (740W with one PSU)
Dual hot swappable power supplies and fans
AV Profiles

All AV switches with the “-V” suffix in the ICX 8200 (and 8100) switching range are provided with optimised factory-default configs for maximum AV-over-IP performance straight out-of-the-box – such as optimised IGMP snooping, QoS and multicast settings for super low latency audio & video – making setup for network engineers working on demanding pro AV installations a breeze.

Grab the datasheets below to view the more intimate details for the entire ICX 8200 switch family – and if you need any advice choosing the ideal switch for your deployment, having been a key distributor for Ruckus almost since its inception, you can be confident our team of professional networking nerds will be able to help you out! Just give us a call on 03331 212 100, or email ruckus@purdi.com

RUCKUS ICX 8200 SWITCH DATASHEET

RUCKUS ICX 8200 & 8100 PRO AV SWITCHES

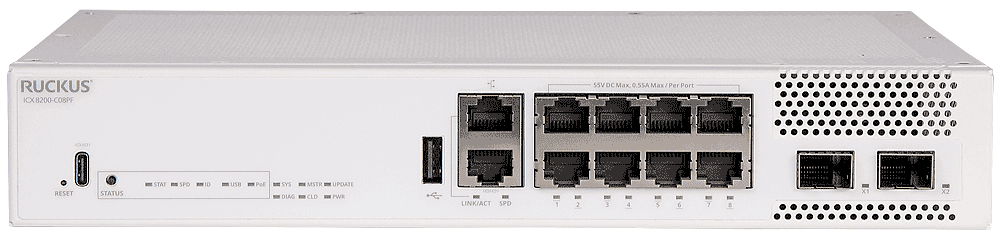

RUCKUS ICX 8200-C08PF PoE Switch

Compact Entry-Level+ 8 port 1G PoE access switch

RUCKUS ICX 8200-C08PF Compact Network/Ethernet Switches

8× 10/100/1000 Mbps RJ-45 PoE+ ports
2× 1/10GbE uplink/stacking SFP+ ports
124 W PoE budget PoE+ 802.3at

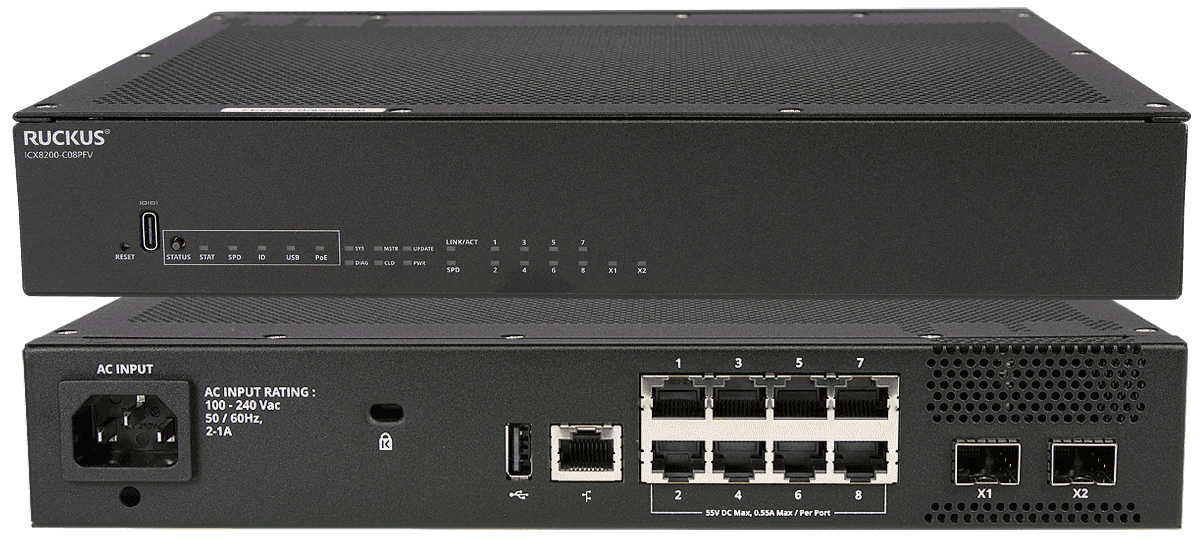

RUCKUS ICX 8200-C08PFV PoE Pro AV Switch

The C08PFV is a compact 8 port PoE AV switch purpose-built for pro-audio & video deployments with optimized factory default configs for maximum AV-over-IP performance. Featuring rear facing ports and front facing LEDs that can be toggled off at the touch of a button, the ICX 8200 C08PFV Pro AV switch is perfect for creators, small studios and home cinema installations.

RUCKUS ICX 8200-C08PFV Compact Pro AV Switch - silent fanless design with main Ethernet ports on rear of the unit. Front LEDs can be completely turned off - ideal for home cinema installations.

Designed for AV rack, in-wall, or desktop installations
8X 1/100/1000 Mbps RJ45 802.3at PoE+ rear facing ports
2X 1/10 GbE uplink/stacking SFP+ rear facing ports
124 W PoE budget
AV Profiles, silent fanless design

RUCKUS ICX 8200-C08ZP Multigigabit PoE Switch

Compact Entry-Level+ 8 Port Multigigabit PoE access switch

4× 100/1000/2500 Mbps RJ-45 PoE++ 90W ports
4× 1/2.5/5/10 Gbps RJ-45 PoE++ 90W ports
2× 1/10/25 GbE uplink/stacking SFP28 ports
240 W PoE budget

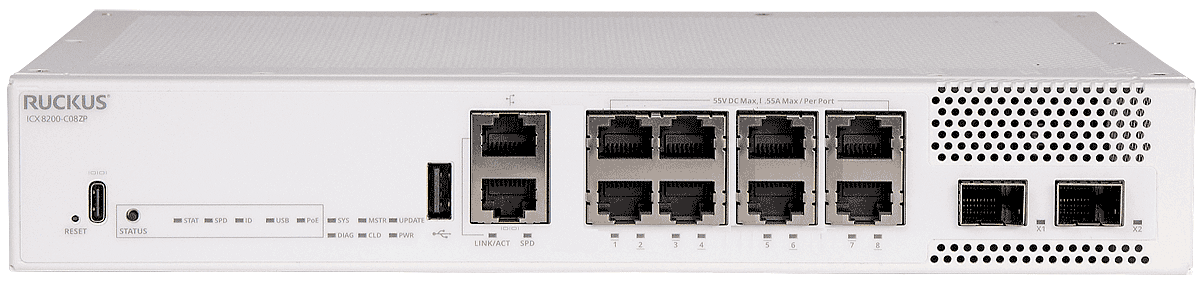

RUCKUS ICX 8200-C08ZP-V Multigigabit PoE Pro AV Switch

Compact Entry-Level+ 8 Port Multigigabit PoE access switch, purpose built with factory-default profiles for high performance professional audio & video applications straight out of the box.

RUCKUS ICX 8200-C08ZP-V Compact Pro AV over IP optimised access switches for professional audio & video installations

4× 100/1000/2500 Mbps RJ-45 PoE++ 90W ports
4× 1/2.5/5/10 Gbps RJ-45 PoE++ 90W ports
2× 1/10/25 GbE uplink/stacking SFP28 ports
240 W PoE budget
AV Profiles

Download the PDFs below to see more detailed specs for every model in 8200 switching range, and if you need help choosing best switch for your installation, our Ruckus specialists are always available to advise on 03331 212 100 – or email ruckus@purdi.com
