RUCKUS Wireless: Access Points

RUCKUS access points deliver fast, reliable & secure performance.

CommScope RUCKUS access points (APs) provide superior connectivity with the latest Wi-Fi standards. RUCKUS APs work well in the toughest of environments and excel in performance with everyday challenges. For deployments where there may be high-client density, Wi-Fi unfriendly building materials or demanding end-users, RUCKUS has the solution. RUCKUS APs will provide connectivity in any vertical or environment.

Every RUCKUS access point (AP) is packed with patented technology that goes well beyond its competitors. What makes RUCKUS APs stand out, is advanced features like the Beamflex+ adaptive antenna, that provides stronger signals at a longer distance. ChannelFly which leverages machine learning to automatically find the least congested channel and SmartMesh which allows greater coverage without cable drops.

RUCKUS Indoor Access Points

Wi-Fi 6 – Indoor Access Points (APs)

RUCKUS indoor access points (APs) with Wi-Fi 6 (802.11ax), allows the user to connect more devices onto one AP using the latest technology like OFDMA, TWT and MU-MIMO. Wi-Fi 6 makes it possible for APs to connect with increased capacity and improved coverage and performance. With more devices being connected and fewer APs to manage, networks become more cost-effective and simpler to maintain.

RUCKUS has a vast portfolio of different access points to chose from when designing a network, meaning businesses can thrive by taking advantage of the latest and most suitable technology. RUCKUS Wi-Fi 6 APs have build-in IoT radios with onboard BLE and Zigbee capabilities, which allow customers to eliminate siloed networks and unify Wi-Fi and non-Wi-Fi wireless technologies into one single network.

CommScope RUCKUS R850

8×8 dual-concurrent AP
with MU-MIMO, BeamFlex+
and 5Gbps backhaul

RUCKUS R850

RUCKUS R850 targeted at:

Transit hubs
Auditoriums
Stadiums
Conference centers
Other highly trafficked indoor spaces

Benefits

Supports 12 spatial streams
8×8:8 (5GHz), 4×4:4 (2.4GHz)
– WFA Certified Wi-Fi 6
Peak PHY throughput:
– 4.8Gbps (5GHz)
– 1.148Gbps (2.4GHz)
Build in IoT radios with onboard:
BLE/Zigbee enabling IoT applications
High density deployment: high networking: capacity 1024 clients

DATA SHEET: R850

CommScope RUCKUS R750

4×4 dual-concurrent AP
with MU-MIMO, BeamFlex+
and 2.5Gbps backhaul

RUCKUS R750

The RUCKUS R750 targeted at:

Transit hubs
Auditoriums
Conference centers
Other highly trafficked indoor spaces

Benefits

- Supports 8 spatial streams
  4×4:4 (5GHz), 4×4:4 (2.4GHz)
  – WFA Certified Wi-Fi 6
- Peak PHY throughput:
  – 4.8Gbps (5GHz)
  – 1.148Gbps (2.4GHz)
- Build in IoT radios with onboard: BLE/Zigbee
  enabling IoT applications
- High density deployment: high networking: capacity 1024 clients

DATA SHEET: R750

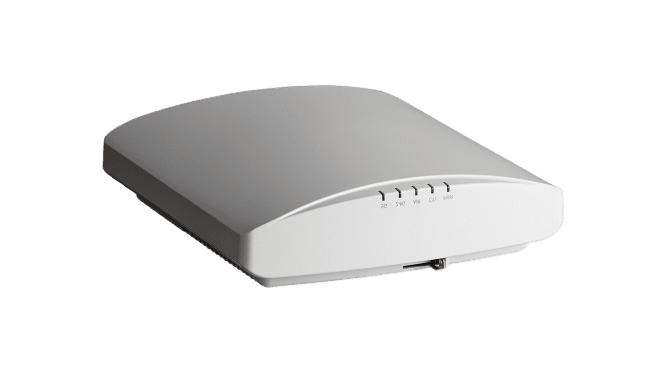

CommScope RUCKUS R730

8×8 dual-concurrent AP
with MU-MIMO, BeamFlex+
and 5Gbps backhaul

RUCKUS R730

The RUCKUS R730 targeted at:

Transit hubs
Auditoriums
Stadiums
Conference centers
Other highly trafficked indoor spaces

Benefits

- Supports 12 spatial streams
- – 8×8:8 (5GHz), 4×4:4 (2.4GHz)
- IoT and LTE ready
- High density deployment: high networking: capacity 1024 clients

DATA SHEET: R730

CommScope RUCKUS R650

Dual-concurrent AP
with MU-MIMO and BeamFlex+

RUCKUS R650

RUCKUS R650 targeted at:

Office buildings
Classrooms
Libraries
Retail venues

Benefits

- Supports 6 spatial streams
  4×4:4 (5GHz), 2×2:2 (2.4GHz)
- Peak PHY throughput:
  – 4.8Gbps (5GHz)
  – 1.148Gbps (2.4GHz)
- Build in IoT radios with onboard: BLE/Zigbee
  enabling IoT applications
- Medium density deployment: networking capacity 512 clients

DATA SHEET: R650

CommScope RUCKUS R550

Dual-concurrent AP
with MU-MIMO and BeamFlex+

RUCKUS R550

RUCKUS R550 targeted at:

Classrooms
Residence halls
Hallways
Office spaces

Benefits

- Supports 4 spatial streams
  2×2:2 in (2.4GHz/5GHz)
- Peak PHY throughput:
  – 4.8Gbps (5GHz)
  – 1.148Gbps (2.4GHz)
- Build in IoT radios with onboard: BLE/Zigbee enabling IoT applications
- Medium density deployment: networking capacity 512 clients

DATA SHEET: R550

Wi-Fi 5 – 802.11ac Waves 2 – Indoor Access Points (APs)

802.11ac Wave 2 access points deliver high-performance and reliable and resilient Wi-Fi connectivity. With data rates reaching from 2.4GHz and 5GHz, the APs offer the highest available throughput available to clients. Also, each access point has multiple management options that can integrate with RUCKUS Cloud management, ZoneDirector or SmartZone to enable simplified management across the RUCKUS APs product range.

All access points have BeamFlex+ technology. BeamFlex+ is RUCKUS patented antenna that allows its APs to choose the best and quickest connection for every device connected to the network. This results in superior Wi-Fi coverage and reduces RF interference. All RUCKUS access points have the unique ChannelFly technology, for dynamic channel selection, finding the least congested WI-Fi channels to use.

End of Sale: Please be advised, Wi-Fi 5 802.11ac WAVE 2 RUCKUS Access Points will no longer be available for purchase. Effective January 31, 2022.

CommScope RUCKUS R720

Dual-concurrent AP
with MU-MIMO, BeamFlex+
and 2.5Gbps backhaul

RUCKUS R720

RUCKUS R720 targeted at:

Large businesses
Office buildings
University campuses
Convention centers
Any other indoor space

Benefits

- Supports 4 spatial streams
- (4×4:4 5GHz, 4×4:4 2.4GHz )
- Peak PHY throughput:
  – 4.8Gbps (5GHz)
  – 1.148Gbps (2.4GHz)
- Build in IoT radios with onboard:
- BLE/Zigbee enabling IoT applications
- High density deployment: networking capacity 512 clients

DATA SHEET: R720

CommScope RUCKUS R710

Dual-concurrent AP
with MU-MIMO and BeamFlex+

RUCKUS R710

RUCKUS R710 targeted at:

Schools
Universities
Public venues
Hotels
Conference centers
Other busy indoor space

Benefits

- Supports 4 spatial streams
- (4×4:4 5GHz, 4×4:4 2.4GHz )
- Peak PHY throughput:
  – 4.8Gbps (5GHz)
  – 1.148Gbps (2.4GHz)
- Build in IoT radios with onboard:
- BLE/Zigbee enabling IoT applications
- High density deployment: networking capacity 512 clients

DATA SHEET: R710

CommScope RUCKUS R610

Dual-concurrent AP
with MU-MIMO and BeamFlex+

RUCKUS R610

RUCKUS R610 targeted at:

Classrooms
University lecture halls
Libraries
Retail locations
Branch offices
Other busy indoor space

Benefits

- Supports 3 spatial streams
- (3×3:3 5GHz, 3×3:3 2.4GHz )
- Peak PHY throughput:
  – 4.8Gbps (5GHz)
  – 1.148Gbps (2.4GHz)
- Build in IoT radios with onboard:
- BLE/Zigbee enabling IoT applications
- Medium density deployment: networking capacity 512 clients

DATA SHEET: R610

CommScope RUCKUS R510

Dual-concurrent AP
with MU-MIMO and BeamFlex+

RUCKUS R510

RUCKUS R510 targeted at:

Small or mid-sized businesses
Common areas in hotel
Office buildings
Retail sites
Branch offices

Benefits

- Supports 2 spatial streams
- (2:2:2 5GHz, 2×2:2 2.4GHz )
- Peak PHY throughput:
  – 4.8Gbps (5GHz)
  – 1.148Gbps (2.4GHz)
- Build in IoT radios with onboard:
- BLE/Zigbee enabling IoT applications
- Medium density deployment: networking capacity 512 clients

DATA SHEET: R510

CommScope RUCKUS R320

Dual-concurrent AP
with BeamFlex

RUCKUS R320

RUCKUS R320 targeted at:

Small venues
Retail locations
Restaurants
Multi-tenant small offices
Branch offices

Benefits

- Supports 2 spatial streams
- (2×2:2 5GHz, 2×2:2 2.4GHz )
- Peak PHY throughput:
  – 4.8Gbps (5GHz)
  – 1.148Gbps (2.4GHz)
- Build in IoT radios with onboard:
- BLE/Zigbee enabling IoT applications
- Low density deployment: networking capacity 512 clients

DATA SHEET: R320

Specialised – Indoor Access Points (APs)

RUCKUS wall-mounted access points (APs), H510, H320 and C110 access points, deliver great in-room Wi-Fi coverage with 802.11ac Wave 2 speed. These APs are specifically designed for per-room deployment, with the wall mount it makes it easy to meet the most demanding in-room connectivity without high costs, you can deploy the APs in areas like hotels, apartments, and any other multi-dwelling structures, which will establish a connectivity with a wide range of wired devices – IP phones, networked minibars, IPTV set-up boxes and many other devices.

Additionally, if vertical require mobile-wireless indoor access point, there is the RUCKUS M510, which provides outstanding performance, managed Wi-Fi without cables, gives the benefit of rapid deployment and connectivity. RUCKUS M510 pulls using an LTE network connection to support mobile hotspot requirements, and is ideal for in-vehicle Wi-Fi and public transportation. The advantage of RUCKUS M510, is simplified installation, tracking and easy to maintain.

End of Sale: Please be advised, Wi-Fi 5 802.11ac WAVE 2 RUCKUS Access Points will no longer be available for purchase. Effective January 31, 2022.

CommScope RUCKUS H510

Dual-concurrent wall-switch
with 5 GbE ports and BeamFlex+

RUCKUS H510

RUCKUS H510 targeted at:

Hospitality
Residential locations
Hotel guest rooms
Apartments
Student halls

Benefits

- Supports 2 spatial streams
- (2:2:2 5GHz,
  2×2:2 2.4GHz )
- Peak PHY throughput:
  – 4.8Gbps (5GHz)
  – 1.148Gbps (2.4GHz)
- Build in IoT radios with onboard:
- BLE/Zigbee enabling IoT applications
- Medium density deployment: networking capacity 100 clients

DATA SHEET: H510

CommScope RUCKUS H320

Dual-concurrent wall switch
with 2 10/1000MbE ports and BeamFlex+

RUCKUS H320

RUCKUS H320 targeted at:

Designed specifically for per-room deployment
Guest rooms
Residence halls

Benefits

- Supports 2 spatial streams
- (2:2:2 5GHz,
  2×2:2 2.4GHz )
- Peak PHY throughput:
  – 4.8Gbps (5GHz)
  – 1.148Gbps (2.4GHz)
- Build in IoT radios with onboard:
- BLE/Zigbee enabling IoT applications
- Networking capacity 100 clients

DATA SHEET: H320

CommScope RUCKUS C110

Dual-concurrent wall plate
with build-in DOCSIS 3.0 cable modem

RUCKUS C110

RUCKUS C110 targeted at:

Hotels
Student residence hall
Multi-dwelling unit properties

Benefits

- Supports 2 spatial streams
- (2:2:2 5GHz,
- 2×2:2 2.4GHz )
- Peak PHY throughput:
  – 4.8Gbps (5GHz)
  – 1.148Gbps (2.4GHz)
- Build in IoT radios with onboard:
- BLE/Zigbee enabling IoT applications
- Networking capacity 100 clients

DATA SHEET: C110

CommScope RUCKUS M510

Mobile indoor 2×2:2 Wi-Fi
with LTE backhaul

RUCKUS M510

RUCKUS M510 targeted at:

In-vehicle – Wi-Fi
Pop-up retail
Temporary Wi-Fi at construction sites
Retail sites
Branch offices

Benefits

- Supports 2 spatial streams
- (2:2:2 5GHz,
- 2×2:2 2.4GHz )
- Peak PHY throughput:
  – 4.8Gbps (5GHz)
  – 1.148Gbps (2.4GHz)
- Build in IoT radios with onboard:
- BLE/Zigbee enabling IoT applications
- Networking capacity 512 clients

DATA SHEET: M510

RUCKUS Outdoor Access Points (APs)

Generic Portfolio of Outdoor Access Points (APs)

RUCKUS is the market leader in outdoor Wi-Fi, solving many complex outdoor connectivity requirements. RUCKUS continues to constantly outperform the market with its outdoor access points. By having the latest technology installed, every end-user benefits from connectivity that works in any environment and any weather. You can always have confidence in the proven high-performance of RUCKUS technology.

The benefits of RUCKUS outdoor access points, is simple deployment with one-touch technologies like SmartMesh, BeamFlex+ and ChannelFly, removing complexity and saving on the time it takes to install and set-up your network. RUCKUS outdoor APs are available with omnidirectional antennas or internal high-gain directional antenna models, giving you more options and flexibility.

End of Sale: Please be advised, Wi-Fi 5 802.11ac WAVE 2 RUCKUS Access Points will no longer be available for purchase. Effective January 31, 2022.

CommScope RUCKUS T750

Dual-concurrent AP
with MU-MIMO and BeamFlex+

RUCKUS T750

RUCKUS T750 targeted at:

Public venues
Airports
Convention centers
Plazas
Malls
Other dense urban environments

Benefits

- Supports 8 spatial streams
- (4:4:4 5GHz, 4×4:4 2.4GHz )
- Peak PHY throughput:
  – 4.8Gbps (5GHz)
  – 1.148Gbps (2.4GHz)
- Build in IoT radios with onboard:
- BLE/Zigbee enabling IoT applications
- High density deployment: networking capacity 1024 clients

DATA SHEET: T750

CommScope RUCKUS T710

Dual-concurrent AP
with BeamFlex+

RUCKUS T710

RUCKUS T710 targeted at:

Airports
Convention centers
Plazas
Malls
Public outdoor hotspots

Benefits

- Supports 4 spatial streams
- (4:4:4 5GHz, 4×4:4 2.4GHz )
- Peak PHY throughput:
  – 4.8Gbps (5GHz)
  – 1.148Gbps (2.4GHz)
- Fibre SFP
- High density deployment: networking capacity 512 clients

DATA SHEET: T710

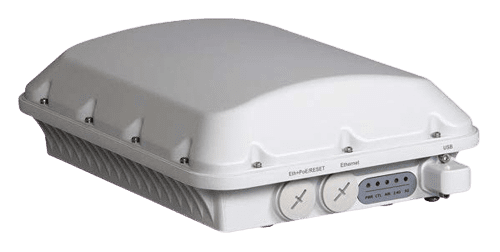

CommScope RUCKUS T610

Dual-concurrent AP
with BeamFlex+

RUCKUS T610

RUCKUS T610 targeted at:

Airports
Convention centers
Plazas
Shopping centers
Other dense urban environments

Benefits

- Supports 4 spatial streams
- (4:4:4 5GHz, 4×4:4 2.4GHz )
- Peak PHY throughput:
  – 4.8Gbps (5GHz)
  – 1.148Gbps (2.4GHz)
- Build in IoT radios with onboard:
- BLE/Zigbee enabling IoT applications
- Medium density deployment: networking capacity 512 clients

DATA SHEET: T610

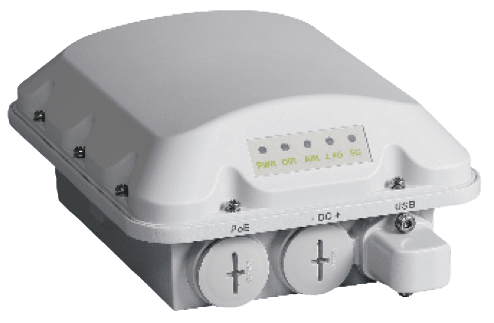

CommScope RUCKUS T310

Outdoors AP series
with integrated BeamFlex+
omni and sector antennas

RUCKUS T310

RUCKUS T310 targeted at:

Airports
Convention centers
Shopping centers
Plazas
Other dense urban environments

Benefits

- Supports 2 spatial streams
- (2:2:2 5GHz, 2×2:2 2.4GHz )
- Peak PHY throughput:
  – 4.8Gbps (5GHz)
  – 1.148Gbps (2.4GHz)
- Build in IoT radios with onboard:
- BLE/Zigbee enabling IoT applications and
- others (T310d, T310n, T310s)
- Networking capacity 512 clients

DATA SHEET: T310

CommScope RUCKUS T811-CM

4×4:4 2.5/5GHz AP
with DOCSIS 3.1 backhaul

RUCKUS T811-CM

RUCKUS T811-CM targeted at:

Outdoor hotspot sevices:
Neighborhoods
Resorts
Train Stations
Other public locations

Benefits

- Supports 2 spatial streams
- (4:4:4 5GHz, 4×4:4 2.4GHz )
- Peak PHY throughput:
  – 4.8Gbps (5GHz)
  – 1.148Gbps (2.4GHz)
- Build in IoT radios with onboard:
- BLE/Zigbee enabling IoT applications
- High density deployment: networking capacity 512 clients

DATA SHEET: T811-CM

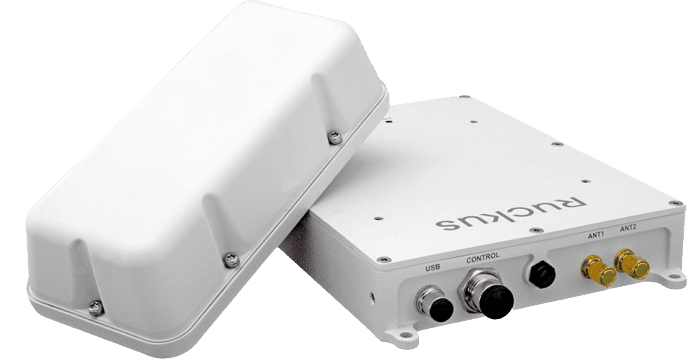

CommScope RUCKUS E510

External BeamFlex+ Antennas

RUCKUS E510

RUCKUS E510 targeted at:

Park benches
Inside a vehicle
Street lights
Inside signage – at a bus stop
Within a vending machine
Display kiosk

Benefits

- Supports 2 spatial streams
- (2:2:2 5GHz, 2×2:2 2.4GHz )
- Peak PHY throughput:
  – 4.8Gbps (5GHz)
  – 1.148Gbps (2.4GHz)
- Build in IoT radios with onboard:
- BLE/Zigbee enabling IoT applications
- Networking capacity 512 clients

DATA SHEET: E510

CommScope RUCKUS P300

Point-to-point / Multi-point bridge

RUCKUS P300

RUCKUS P300 targeted at:

Hotels
Schools
Warehouses
Other business looking to extend
managed wireless LANs (WLANs)
Across remote buildings – where
Ethernet cabling in not possible.

Benefits

- Supports 2 spatial streams
- (2:2:2 5GHz)
- Peak PHY throughput:
  – 4.8Gbps (5GHz)
- 1×10/100/1000Base-T Ethernet Ports
- 802.3af PoE input
- Networking capacity: up to 8 client bridges

DATA SHEET: P300

RUCKUS Resources

Eton College Case Study

Windsor, U.K. 1,300 students. Secure, high capacity networks for BYOD, digital classrooms and boarding rooms. Eton is home to 1,300 students who join at age 13 and continue until age 18. Teaching staff also live on campus, so school operations never stop.

READ CASE STUDY
